Product Introduction

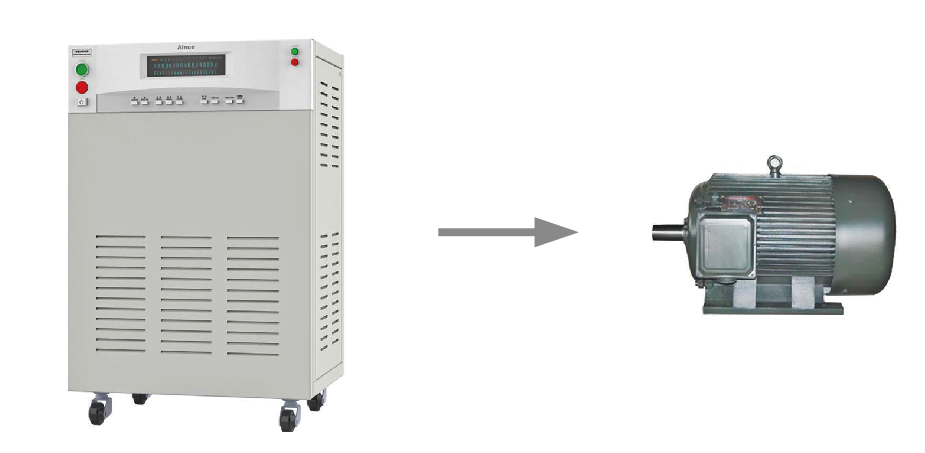

The AN97H(F) series frequency conversion power supply adopts digital technology and IGBT intelligent output, pure output wave, with excellent technical performance. The power supply has an anti-shock circuit, suitable for various shock loads such as motors and air conditioners; excellent dynamic characteristics, strong load adaptation, high efficiency, simple operation, cost-efficient, suitable for industries such as export electrical appliances plants, laboratories, defense and related industries.

Features

• Over shock capacity: impact load of 1/3 capacity of power supply directly without soft start.;
• Adjustable voltage and frequency during output status;
• Measurement: voltage, current, frequency, active power;
• Level of voltage: 1.0~150.0V, 150.1~300.0V automatically adjusted or locked to 1.0~300.0V;
• Line voltage drop compensation
• Shortcuts groups, power-off memory, shortcuts key;
• Lock key, user-friendly design to prevent mis-operation;
• HD VFD display;
• Standard RS232 port, optional RS485 port or remote control port.

Applications

• Over shock capacity: impact load of 1/3 capacity of power supply directly without soft start.
