AN50(V3)(F) Series Small Power DC Power Supply

AN50(V3)(F) Series Small Power DC Power Supply

    AN50(V3)(F) low-power DC power supply adopts high-frequency PWM control and phase-shifted full-bridge conversion, fast dynamic response, strong overcurrent capability, low output ripple, featuring compact, high efficiency, simple operation, etc.

Product Introduction

The AN50(V3)(F) low-power series DC power supply adopts high-frequency PWM control and phase-shifted full-bridge conversion, fast dynamic response, strong overcurrent capability, low output ripple, featuring compact, light, quiet, high efficiency, simple operation and cost-effective. It can be used for manufacturing, testing and maintenance of electronic equipment such as motors, power tools, automotive electronics, switching coils and DC switches, aircraft and airborne equipment, radar, navigation, etc., as well as industrial and mining enterprises, colleges and universities laboratories, research institute, etc.

Features

  • 350mm deep full range of standard chassis, suitable for system integration and portable applications.
  • High frequency PWM and full-bridge conversion technology, with high efficiency.
  • Strong current/power overload capacity, up to 110%.
  • Exceptional output stability.
  • Voltage drop compensation terminal for large current output.
  • Complete protection to ensure normal operation of power supply unit and load security.
  • LED segment display. Clear, convenient for operation.
  • Serial/parallel output, convenient expansion.
  • Powerful programmable features to meet various testing needs.
  • Supports SCPI/MODBUS-RTU standard protocol.

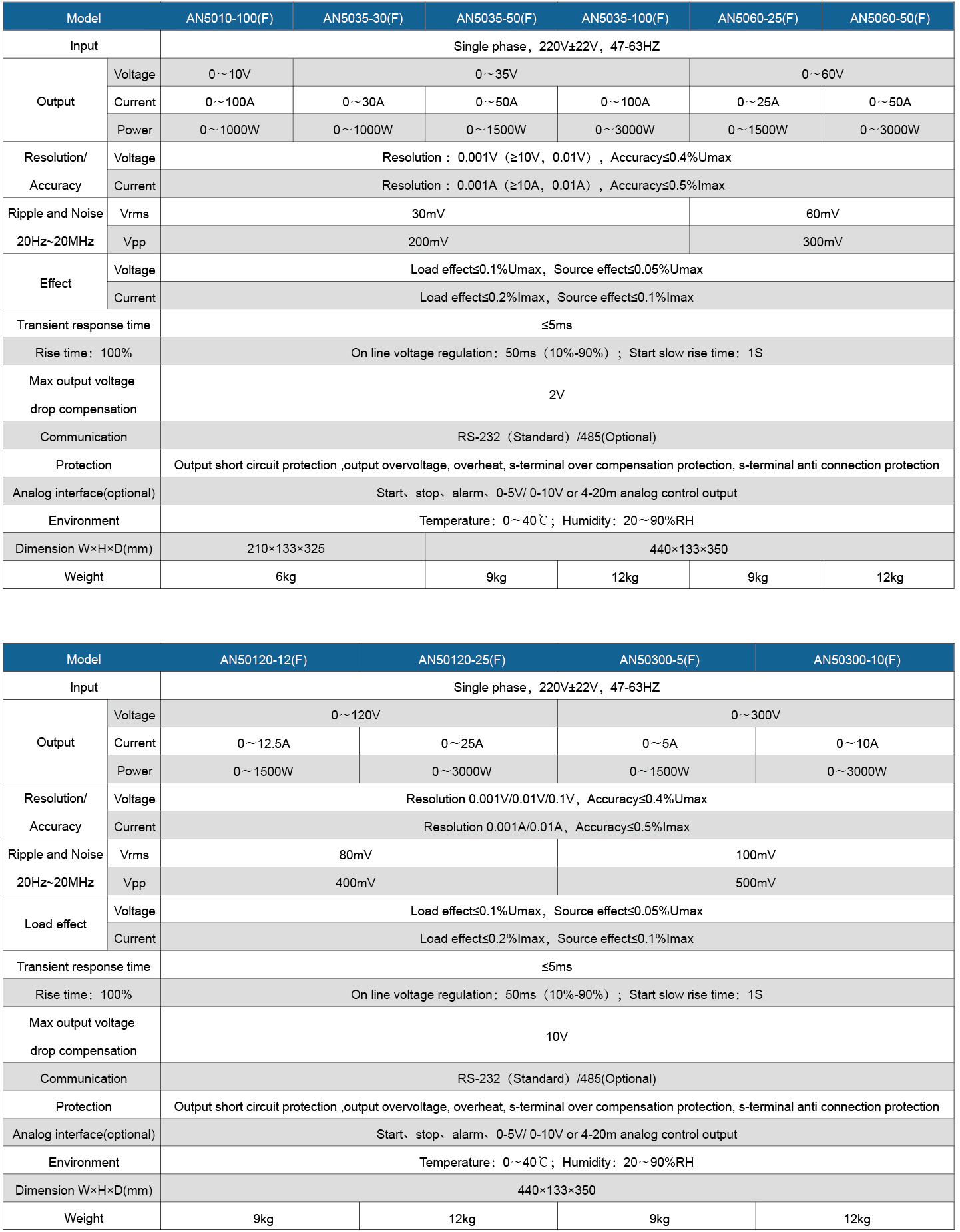

Order and extensions

  • AN5010-100(F):10V/100A/1kW
  • AN5035-30(F):35V/30A/1kW
  • AN5035-50(F):35V/50A/1.5kW
  • AN5035-100(F):35V/100A/3kW
  • AN5060-25(F):60V/25A/1.5kW
  • AN5060-50(F):60V/50A/3kW
  • AN50120-12(F):120V/12.5A/1.5kW
  • AN50120-25(F):120V/25A/3kW
  • AN50300-5(F):300V/5A/1.5kW
  • AN50300-10(F):300V/10A/3kW
