AN83DX(F) Comprehensive New Energy Motor Test Scheme

AN83DX(F) Comprehensive New Energy Motor Test Scheme

    AN83DXS(F)/AN83DXM(F) series comprehensive new energy motor test scheme is suitable for the performance test of the new energy automobile motor stator/complete machine.

Product Introduction

AN83DXS(F)/AN83DXM(F) series comprehensive new energy motor test scheme is suitable for the performance test of the new energy automobile motor stator/complete machine, widely used in testing of various types of new energy motors such as permanent magnet synchronous motors and disc motors.

Features

  • Wide range: test of ultra wide resistance range (1mΩ~400KΩ).
  • High performance: Closed-loop feedback adjustment system is adopted for voltage regulation such as withstand voltage, insulation, and turn-to-turn, precise control of voltage regulation and rising process, stable voltage output.
  • Efficient: testing of 3-phase winding, thermistor and transformer can be complete after connection at one time, high efficiency of this type of motor test.
  • Module: Module test unit to avoid interference, and customize single/multi-station test system as required.
  • Multi ports: USB, RS232, LAN and other ports, PLC simulation, TCP/IP network protocol, etc., to facilitate data interaction and instrument control.

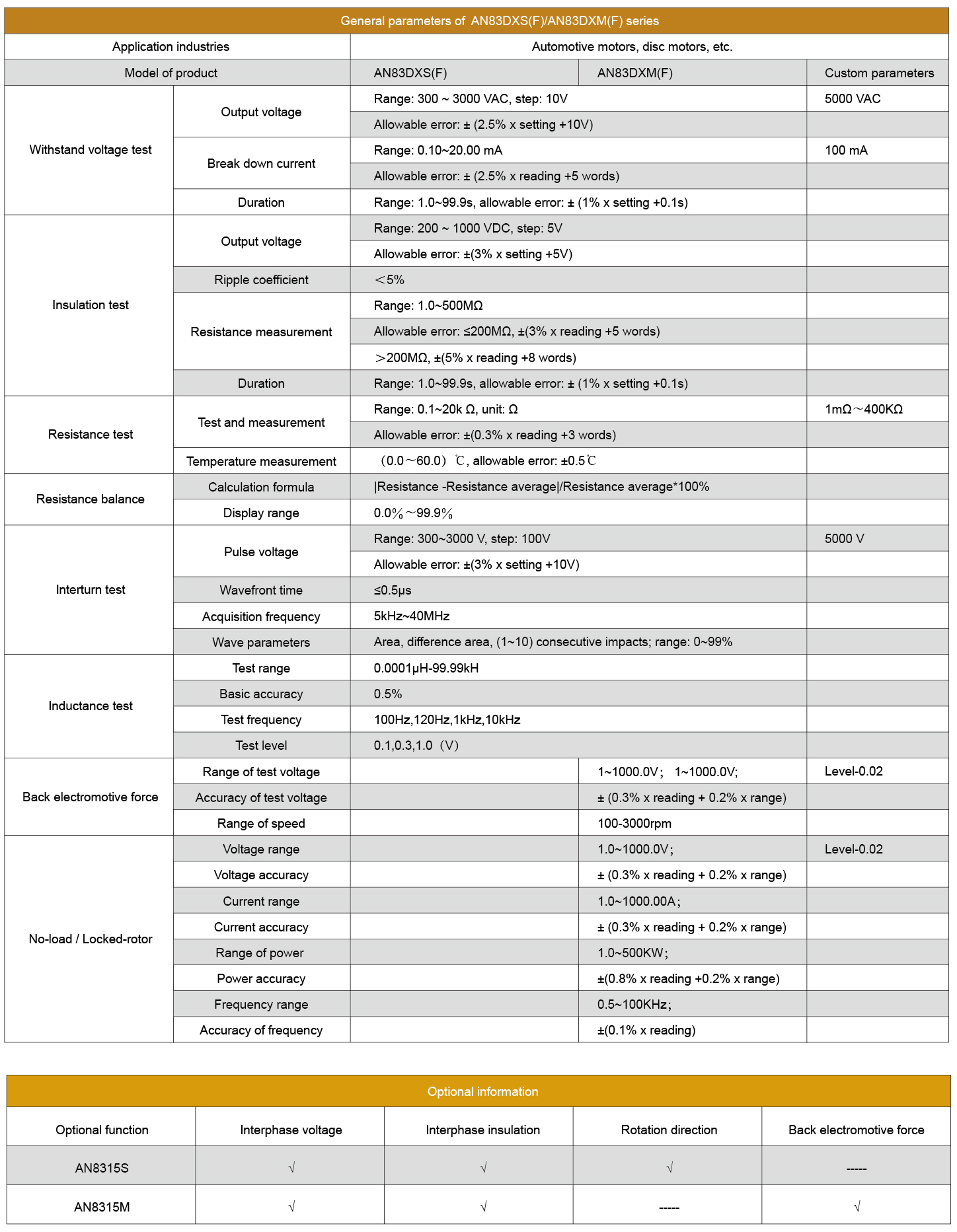

Test items

  • Stator: withstand voltage, insulation, resistance, resistance balance, interturn inductance
  • Motor: withstand voltage, insulation, winding/thermosensitive/transformer resistance, back electromotive force, power

Test cases
