AN83FX(F) Comprehensive Stepping/Servo Motor Test Scheme

AN83FX(F) Comprehensive Stepping/Servo Motor Test Scheme

    AN83FXS(F)/AN83FXM(F) series comprehensive stepping/servo motor test scheme is suitable for testing of reactive, permanent magnet, hybrid stepper motors, AC/DC servo motors.

Product Introduction

AN83FXS(F)/AN83FXM(F) series comprehensive stepping/servo motor test scheme is suitable for testing of reactive, permanent magnet, hybrid stepper motors, AC/DC servo motors. It can complete the test of the static, back electromotive force, hall, encoder and other items of the motor.

Features

  • Wide range: test of ultra wide resistance range (1mΩ~400KΩ).
  • High performance: voltage regulation, insulation, turn-to-turn and other voltage adjustments using closed-loop voltage feedback adjustment system to accurately control the voltage regulation and rising process, stable voltage output.
  • One-stop: self-developed AC/DC power supply, convenient and unified before/after sale.
  • Module: Module test unit to avoid interference, and customize single/multi-station, serial/parallel test system as required.
  • Multi ports: USB, RS232, LAN and other ports, PLC simulation, TCP/IP network protocol, etc., to facilitate data interaction and instrument control.

Test items

  • Stator: withstand voltage, insulation, resistance, resistance balance, interturn, inductance, rotation
  • Complete machine: withstand voltage, insulation, winding resistance, inductance, back electromotive force, rotation

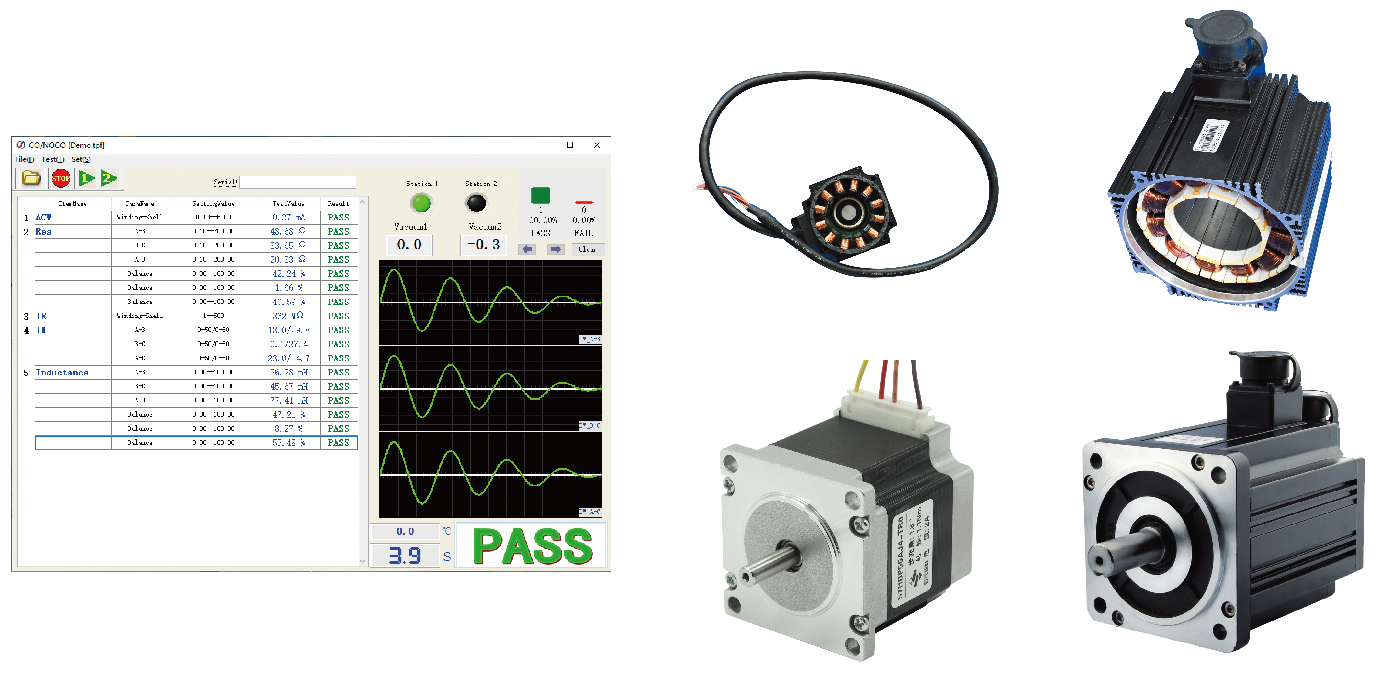

Test cases
