AN9635HC(F) Multi-channel Electrical Safety Tester

AN9635HC(F) Multi-channel Electrical Safety Tester

    Four-in-one: ACW/DCW/IR/GB; High precision: 1% accuracy; Multi-Channel: Multi-Channel scan test.

Product Introduction

Ainuo AN96(F) series multi-channel electrical safety comprehensive tester has the characteristics of high speed, high precision and multi-channel, with functions including AC withstand voltage, DC withstand voltage insulation resistance, AC grounding test, as well as arc detection, open and short circuit detection, multi-channel switching and other function combinations.

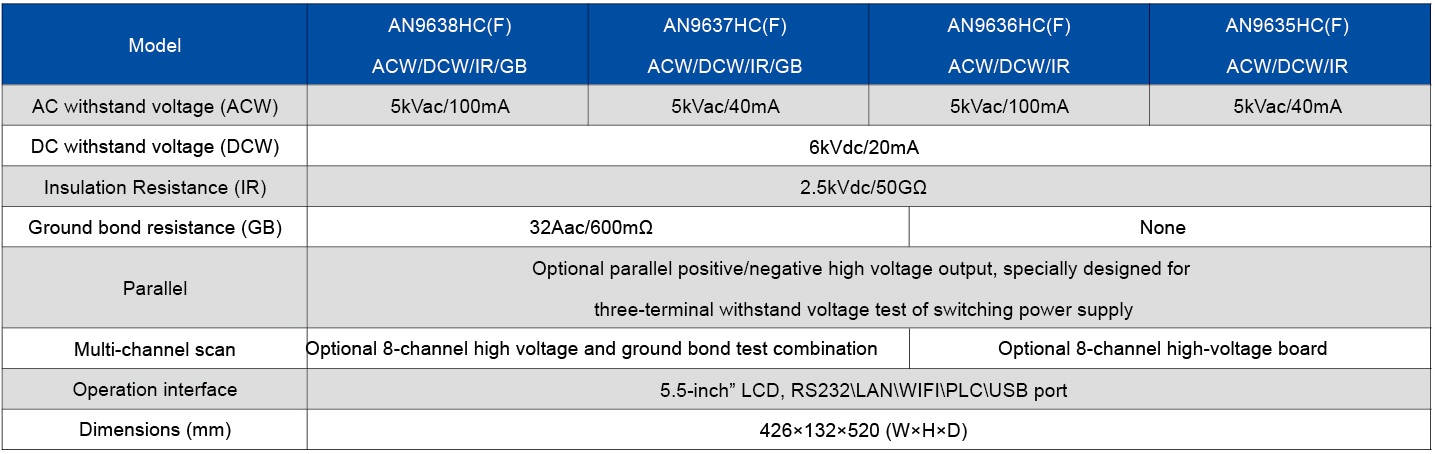

The series of products have wide range options: AC withstand voltage 5kV/100mA (or 40mA), DC withstand voltage 6kV/10mA, insulation resistance 2.5kV/50GΩ, AC grounding 32A/600mΩ.

The product have information interfaces and automation interfaces, meeting the requirements of high-quality development, intelligent manufacturing and industrial upgrading.

The series of products can meet the safety testing requirements of various electrical products with multi I/Os, such as switching power supplies, power adapters, frequency converters, inverters, UPS, motors, electric drives, batteries, and charging piles.

Features

★ Safe and reliable
※ Main drafting unit of state standards and verification regulations for safety testing products;
※ Nearly 30 years of safety testing expertise and follow-up of industry needs;
※ Complete electromagnetic, environment, load, operating conditions, fatigue test verification;
※ Anti-shock protection, arc detection, open/short circuit detection etc.

★ Convenient and efficient
※ Fast measurement and control: fast test, switching, discharge;
※ Accurate test: 500VA AC withstand voltage, 1% accuracy;
※ Flexible configuration: various functions, channels and models.

★ Automatic and efficient
※ Parallel test: parallel positive/negative high voltage test, complete the three-terminal withstand voltage test within 1s;
※ Scan test: multi-channel high voltage and grounding scan test combination, flexible configuration;
※ Rich interface: RS232, USB, LAN, PLC, I/O.
