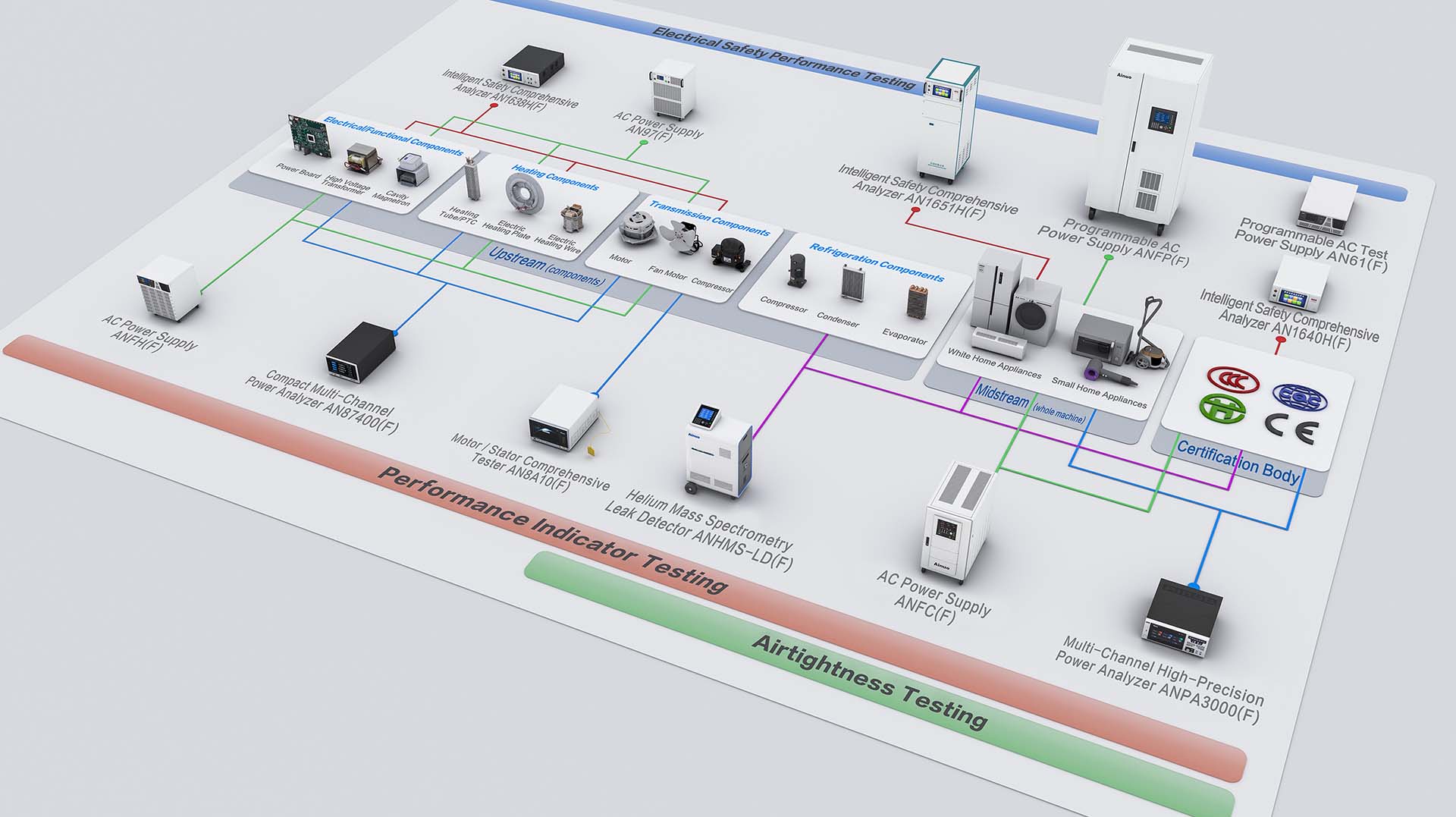

Core components of home appliances directly determine the overall performance and safety of the appliance. Ainuo focuses on four main categories of core components: electrical/functional components (power boards, magnetrons), refrigeration components (compressors, condensers), heating components (PTC heating elements, heating plates), and transmission components (motors). It provides stable, efficient, and high-precision system testing and verification solutions, covering the needs of all stages of R&D and production.
Motor Comprehensive Testing System: Comprehensive and Efficient, Adaptable to Diverse Needs
1) Dynamic/Static Dual Mode: Balances static safety verification and dynamic performance analysis, simulating real-world operating conditions to ensure motor reliability under complex loads.
2) Comprehensive Parameter Coverage: Supports efficient testing of nine key parameters, including withstand voltage, insulation, resistance, inter-turn voltage, inductance, direction of rotation, low-start, stall, and PD (partial discharge). Industry-leading speed significantly improves production line cycle time.
3) Six-Level Power Adaptive: The power module breaks through traditional fixed-range limitations, automatically matching six power levels from 0.1kW to 2kW, solving a wide range of testing needs for home appliance motors.
4) Closed-loop voltage regulation system: Employs military-grade closed-loop feedback regulation to eliminate misjudgments caused by power grid fluctuations.
5) Deep integration of multiple protocols: Supports PLC interface, TCP/IP communication, and RS232 communication; standard Modbus protocol enables seamless integration with MES systems.
Power analyzer: Precise detection ensures component performance
1) Features high power adaptability, high measurement accuracy, and 8-channel measurement.
2) Accurately detects component performance data, providing a reliable basis for component quality control and performance optimization.
