AC Power Supply
Product Model:
ANFH(F) Series
home appliance lines, labs, quality inspection institutes, certification centers etc.
Product overview Product features Product application technical specifications
Product overview

ANFH series AC power supply adopts digital control, instantaneous waveform control and high frequency pulse width modulation (SPWM) technology. It has the advantages of fast response speed, high output accuracy, superior waveform quality, etc.; the power supply has the ability to withstand 3 times the rated current impact, and has strong load adaptability. Mainly used in home appliances, motors and production lines and other applications, is to meet the basic needs of the traditional industry power solutions and equipment replacement power replacement program.

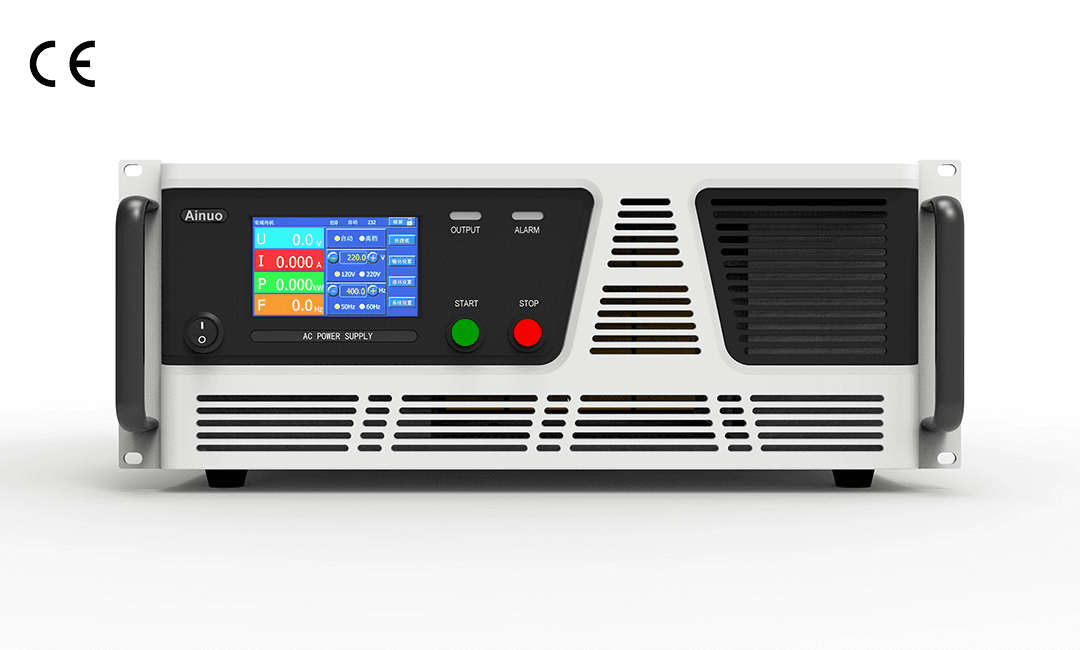

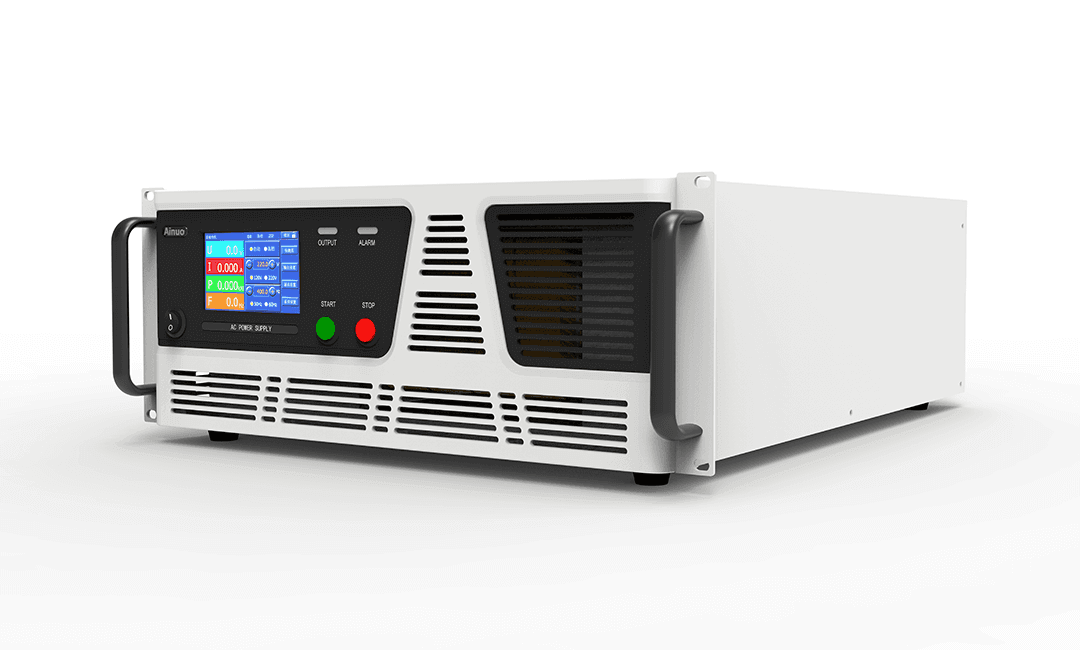

The power supply adopts 19-inch standard chassis size design, small volume, rich interface, can be directly installed in the standard cabinet, to meet the test, system integration, production line and other occasions of use; 4.3-inch color LCD touch screen + plastic shell panel design, the appearance of the display is exquisite, high-end, convenient and intuitive operation.

Product features

·        19” standard chassis, compact, can be installed in standard cabinet;

·         Withstand 3 times the rated current lasting for 2S, directly start impact load equivalent to 1/3 of the power;

·         Adjustment of voltage/frequency in output state;

·         Startup ramp-up and online ramp-up, and the ramp-up time can be set;

·         Measurements: voltage, current, frequency, active power;

·         Voltage level: 1.0~150.0V, 150.1~300.0V automatically adjustable or locked within 1.0~300.0V;

·         Line voltage drop compensation;

·         Multi shortcut groups, power-down memory and shortcut keys;

·         4.3” color touch screen, convenient and intuitive;

·         Key lock and humanized design to avoid misoperation;

·         Operating data recorders: automatically record the power state when alarming and alarm code, etc;

·         Standard RS232 port, optional RS485/GPIB/Ethernet port or analog control.

Product application

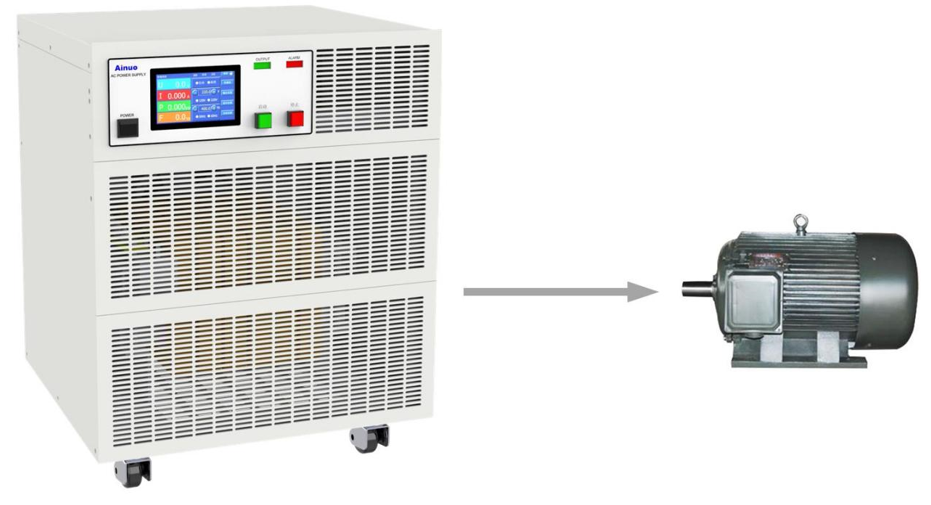

  • Over shock capacity: impact loads with 1/3 power can be directly started without soft start

  • Adjustment of voltage/frequency in output state

  • Start ramp up and online ramp up

  • 4.3” color touch screen, convenient and intuitive

  • Online monitoring function

  • PC control software

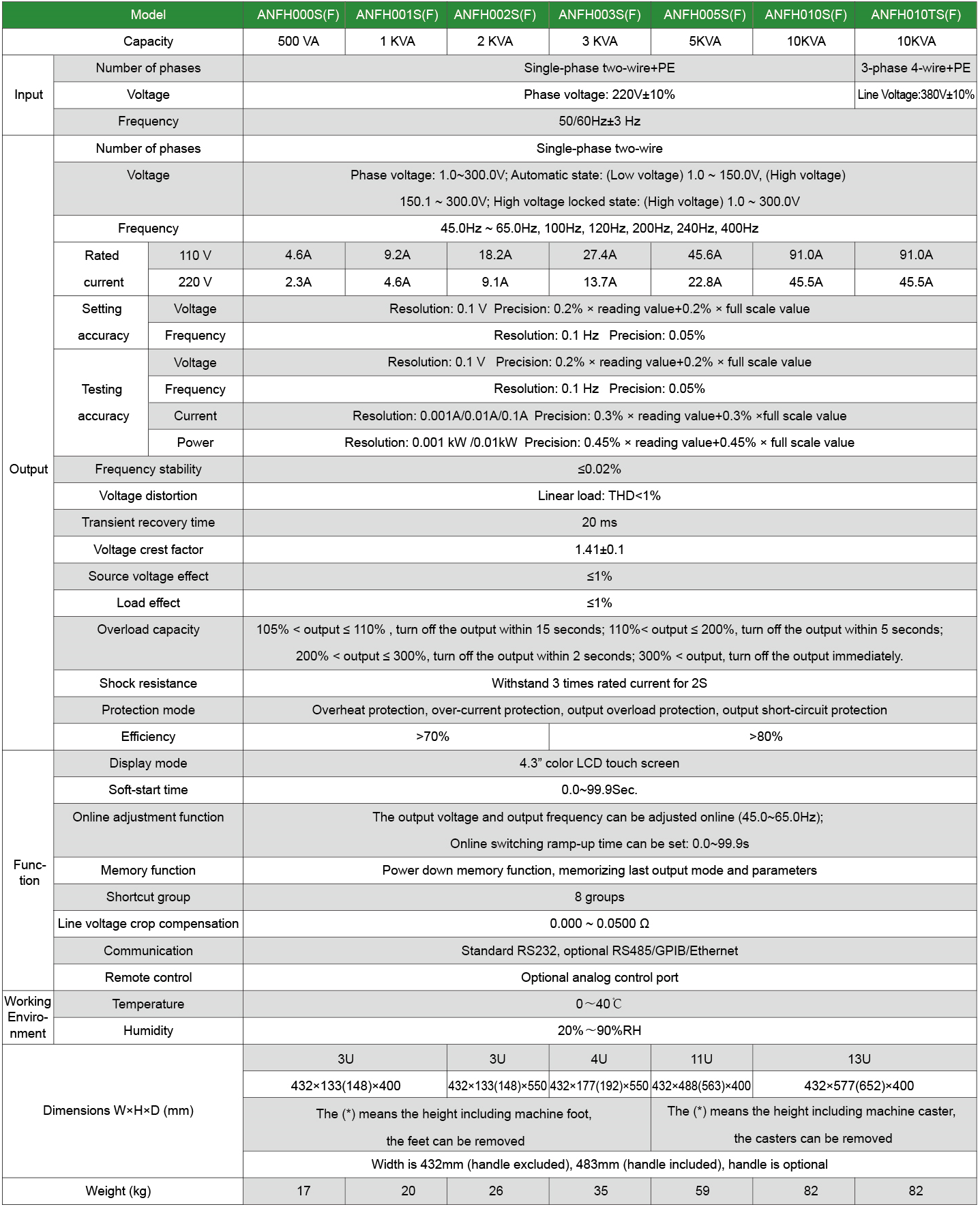

Technical specifications
