AC Withstand Voltage, Insulation Resistance, and Ground Bond Analyzer

Product Model:
AN96XXB(F) Series
Application:
Meet the safety test requirements for various electrical products and components.
Product overview Product features Product application technical specifications
Product overview

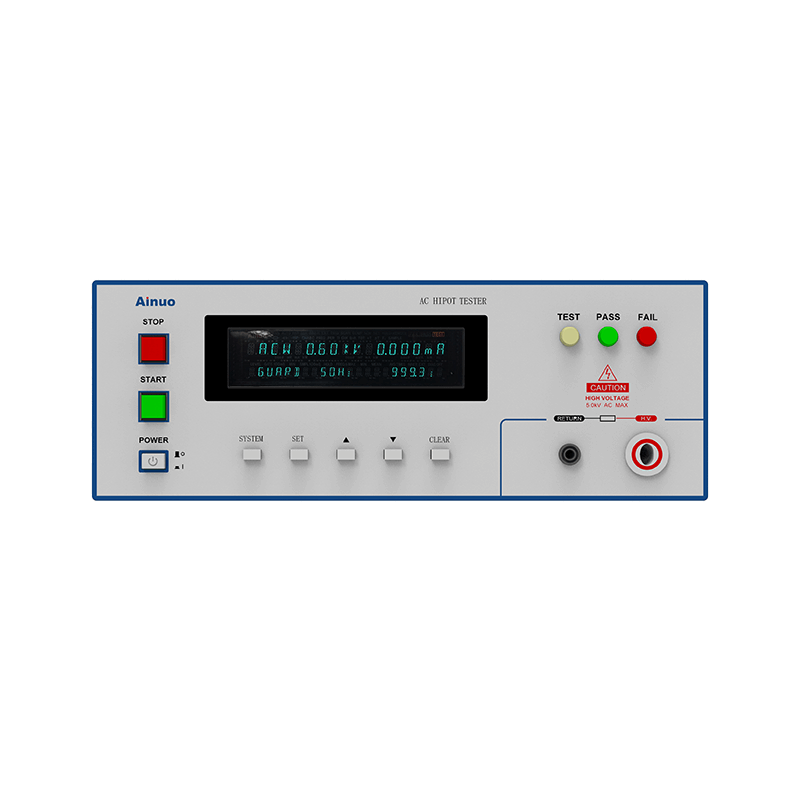

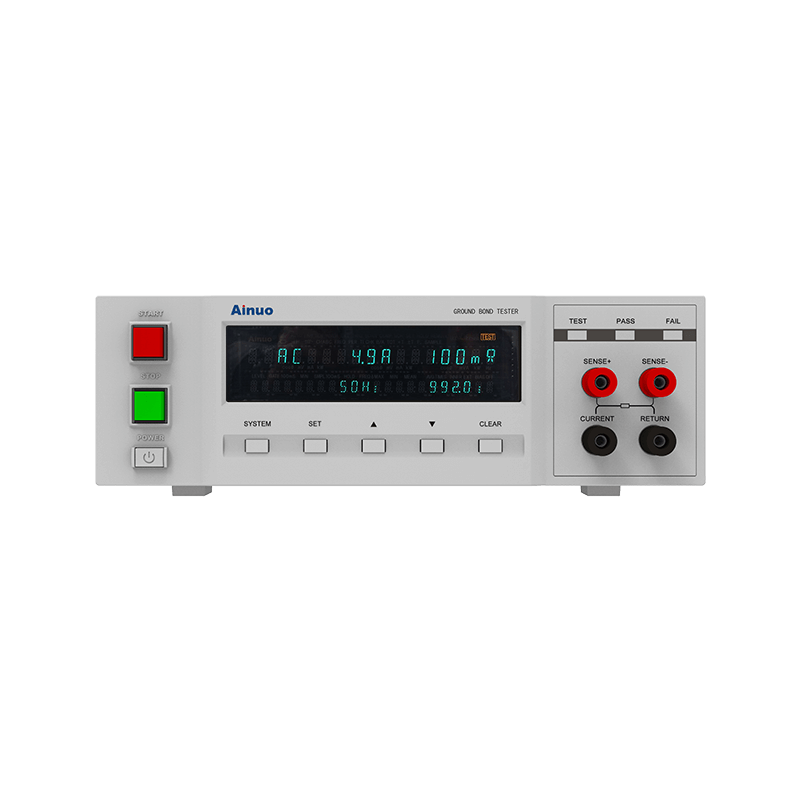

The Ainuo AN96XXB(F) Series is designed with ACW, iR, and GB test, as well as auxiliary functions such as arc detection, shorcircuit detection, low-pass filter, and waiting-for test (for AN9632M(F)), with RS232RS485PLCLAN (optonal)USB (optional) interfaces.

This series of product features compact, light, rich interfaces, and suitable for desktop testing, system integration and otheroperating conditions.

Download Latest Product Catalog

Product features

Main functions

ACW, IR, GB, ARC

Wide range

ACW 5kV/200mA/100mA/20mA, IR 3kV/50GΩ, GB 32A/600mΩ

Rich interfaces

RS232/IO/INTERLOCK/ALARM/USB/LAN

Auxiliary functions

Slow rise/hold/slow down, comprehension, ARC, OSC, WAIT


Product application

Safety of household and similar electrical appliances (GB4706.1/EC60335-1)

Audio and video, information technology, and communication technology equipment (GB4943.1/1EC62368-1)

Safety requirements for electrical equipment for measurement, control, and laboratory use (GB4793.1/EC61010-1)

General principles low voltage switchgear and controlgear Part 1 (GBT14048.1/1EC60947-1)

Safety test for switching power supply, transformer, low-voltage electrical appliances, electronic components and other electronic products

Technical specifications
ModelAN9632M(F)
AN9602B(F)AN9632B(F)AN9605B(F)AN9671B(F)AN9613B(F)
FunctionACW/IRACWACW/IRACWIRGB
AC Withstand Voltage(ACW)
5kV/200mA
5kV/100mA5kV/20mA
None
None
Insulation Resistance(IR)
1kVdc/2000MΩ
None
3kV/50GΩNone
3kV/50GΩNone
AC Ground Bond Resistance(GB)None32A/600mΩ
Operation Interface
VFD character display RS232PLC interface

5" color LCD touch screen, standard RS232IO interface

Optional RS485USBLANALARM interface

Dimensions(W*H*D mm)400*143*505250*118*440213*88*360
