| Model | AN9640H(F) | AN9651H(F) | AN9651H-C(F) |
| AC Withstand Voltage(ACW) | 5kVac/100mA (500VA output capacity, 200mA short-circuit current) (optional dynamic ACW) |
| DC Withstand Voltage(DCW) | 6kVdc/20mA |
| Insulation Resistance(IR) | 3kVdc/50GΩ |
| Ground Bond Resistance(GB) | 40Aac/600mΩ |
| Leakage Current(LC) | 20mA leakage current, MD-A network (lEC60990 Fig. 4, up to 8 networks), RMS measurement |
| Power Test(PT) | 300V/20A/6kW (optional 10kW) |
| Starting Test(ST) | 300V/25A |
| DUT Power Supply | An external isolated power supply is required(an optional built-in 500VA power supply) | Standard 6kVA variable frequency power supply cabinet |
| Parallel Test | Parallel GB, IR/ACW/DCW test |
| Display Operation | LCD, numeric keypad | PC/ESRS measurement and control system |

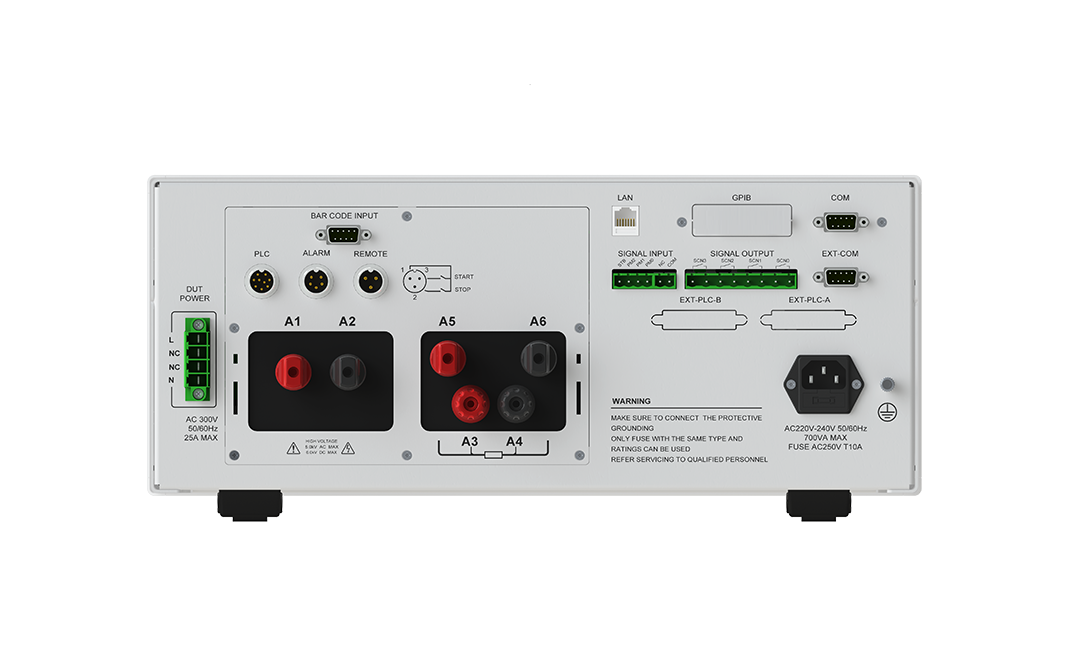

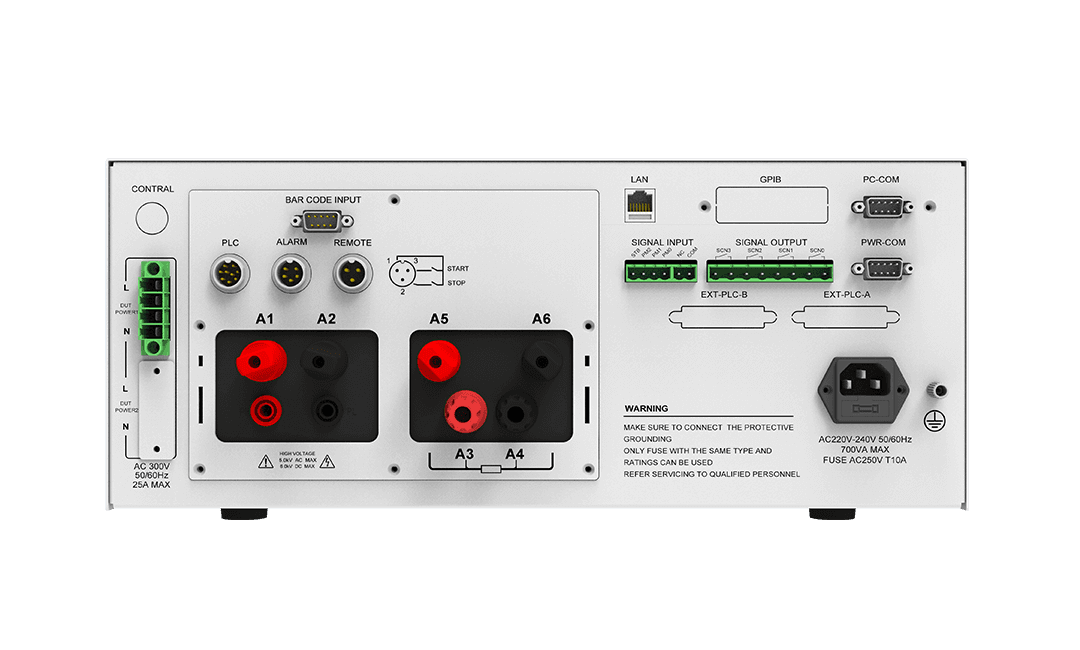

| Control Interface | RS232/LAN (optional)/USB (store)/BARCODE/PLC/ALARM/REMOTE interface |
| Standard Accessories | Test box (3m), test clamp (3m), foot switch (2.5m), alarm lamp (0.8m), auxiliary power cable (1.9m) |
| Optional Accessories | Tester calibrator, barcode scanner, label printer |
| Dimensions(W*H*D mm) | 426*177*550 | 483*1350*600 |
| Over 30 years of industry experience, meeting the test needs of more segmented industries, and complete all tests with just one click and one wiring.
Multiple start modes: button on front panel/remote control/barcode scanner/grounding clamp.
| Parallel GB, IR/ACW/DCW Test

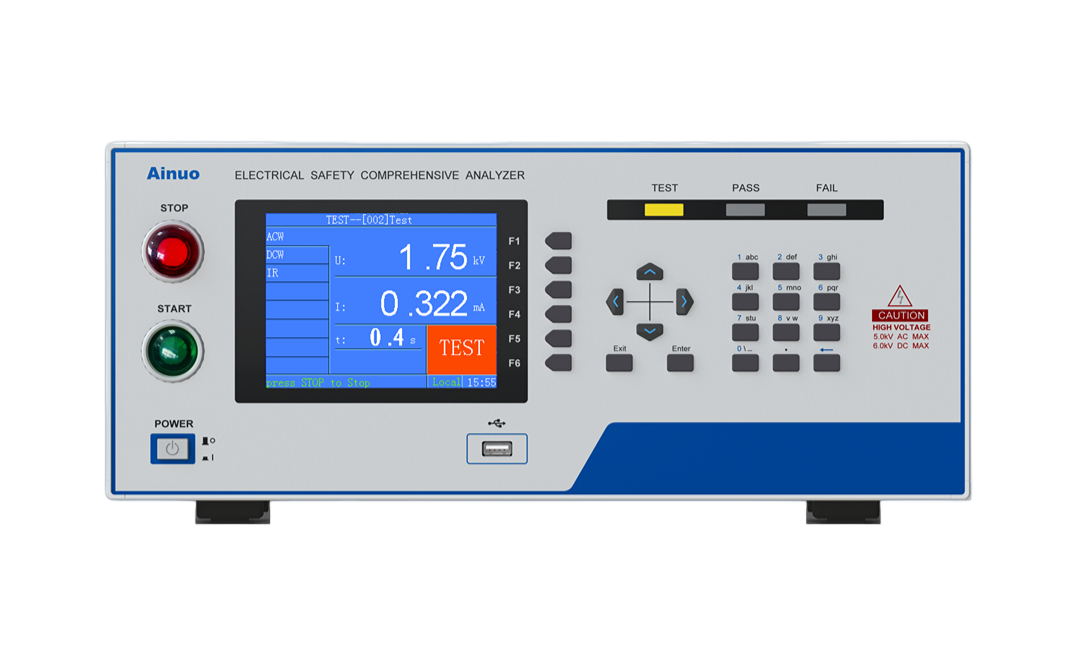

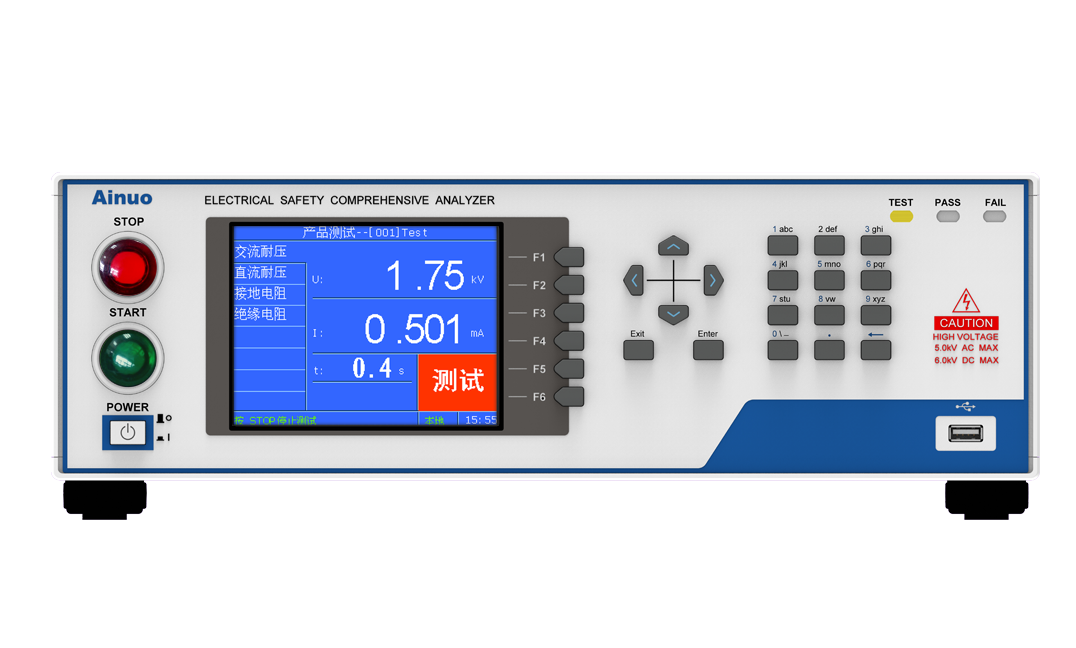

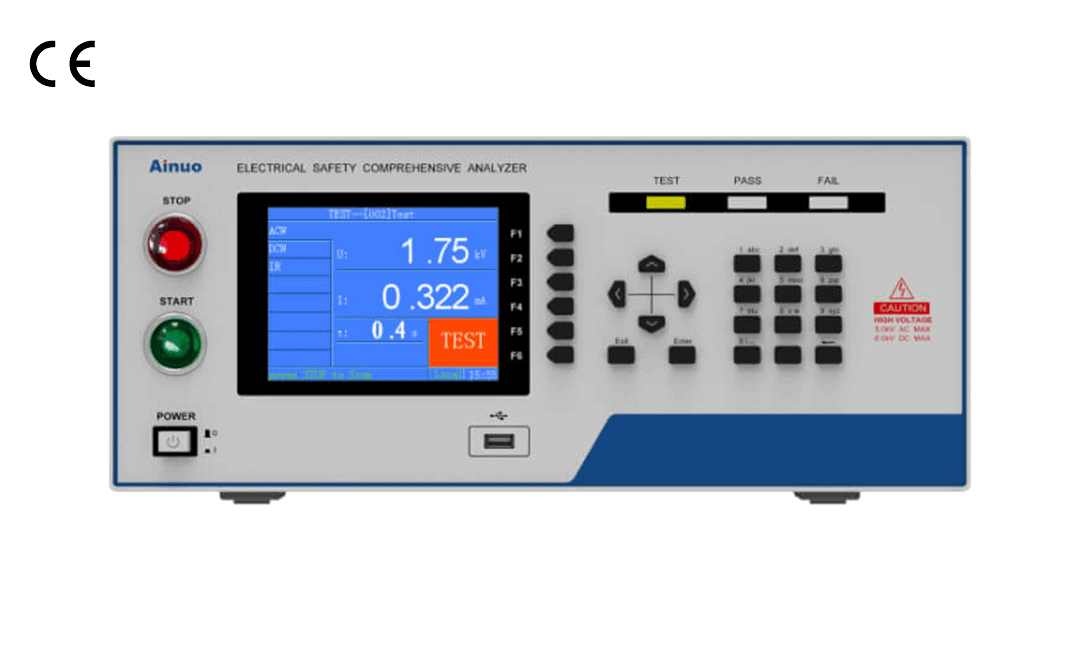

AN9640H(F)Series Efficient Electrical Safety Comprehensive Tester.
With parallel GB, IR/ACW/DCW test.
Significantly reducing the testing time, doubling the production capacity of the production line.
Routine Test 4s
| GB 2s
| IR 1s | ACW 1s |
Parallel Test 2s | GB 2s | / | / |
| IR 1s | ACW 1s
| / | / |

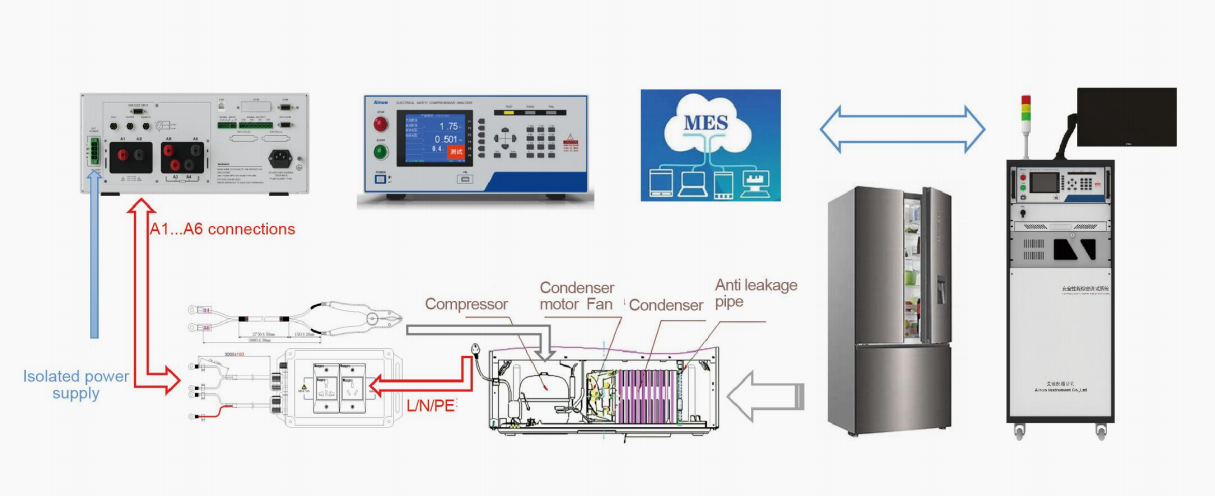

| Build an information test platform with an industrial PC and ESRS measurement and control software.

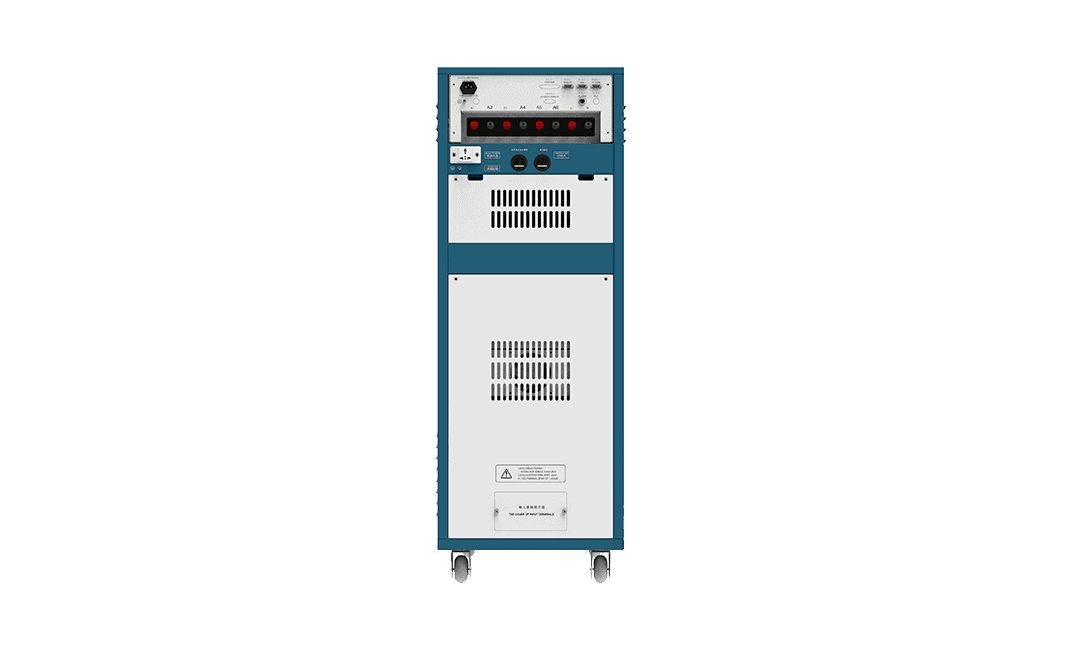

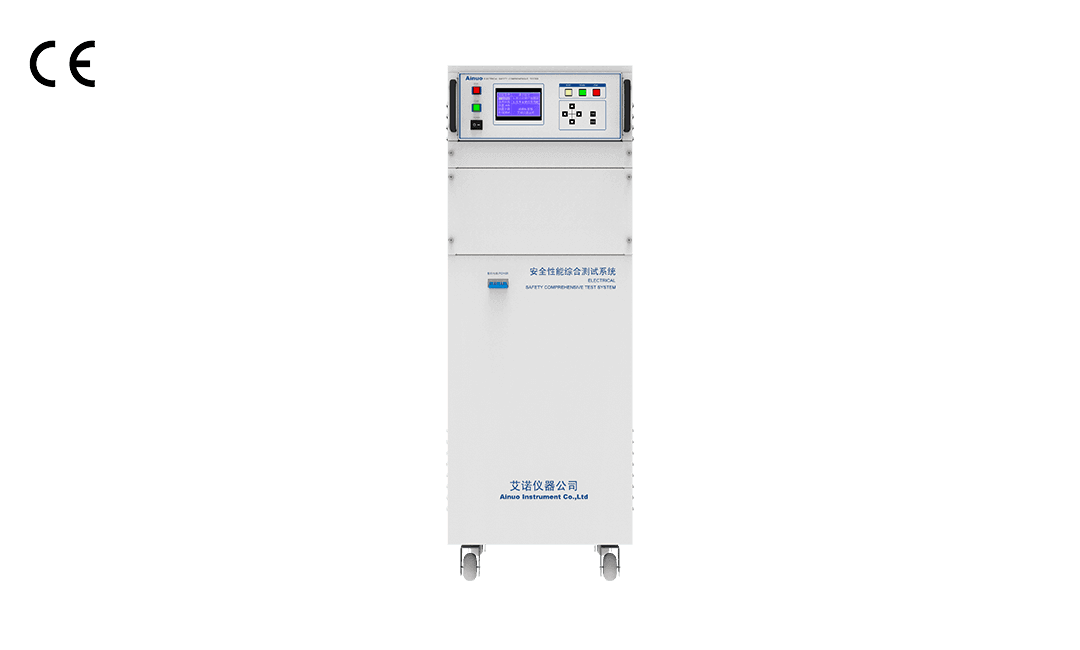

This AN9651H-C(F) Series Efficient Electrical Safety Comprehensive Tester is designed with automation and information test functions:
Barcode scanning/barcode recognition/calling programs/starting test;
Local store/filter/export;
Optional MES connection, active data upload, query upload, and breakpoint continuation; downloading test programs from the server, multiple database connections, including SQL Server, Oracle, MySQL, and other database intermediate table connections, Modbus TCP connection, Web API connection, as well as local TXT text and Access database connection.
