Leakage Current Analyzer

Product Model:
AN1620TH(F) / AN1620H(F) / AN1620H-M(F)
Application:
Leakage current testers are used in electronics manufacturing, semiconductor industry, automotive electronics, medical device testing, aerospace, and consumer electronics for ensuring product safety, quality, and compliance with regulatory standards.
Product overview Product features Product application technical specifications
Product overview

Multiple body area networks (BANs): up to 8 MD options, applicable to multiple industry safety standards.

Multi measurements: RMS, peak, AC component, DC component.

Wide frequency measurement: DC, 10Hz~1MHz contact current frequency measurement.

Multiple power supply states: Multiple power supply states, standard one-click settings for medical equipment.

Product features

Safe and Reliable

Main drafting unit of state standards and verification regulations for safety testing products

Nearly 30 years of safety testing expertise and follow-up of industry needs

Complete electromagnetic, environmental, load, operating conditions, fatigue test verification

Compliance with Regulations

Multi network: up to 8 MD, multi state switching, multi industry standards

Multi parameters: RMS, peak, AC component, DC component

Wide band: DC,10Hz - 1MHz contact current measurement

Intelligent Test

Intelligent platform: Android system, 10" touch screen

Data management: barcode recognition, local store, MES integration

Rich interfaces: RS232,PLC, USB, CAN, WIFI


Product application

Leakage Current Analyzers are used in electronics manufacturing, semiconductor industry, automotive electronics, medical device testing, aerospace, and consumer electronics for ensuring product safety, quality, and compliance with regulatory standards.

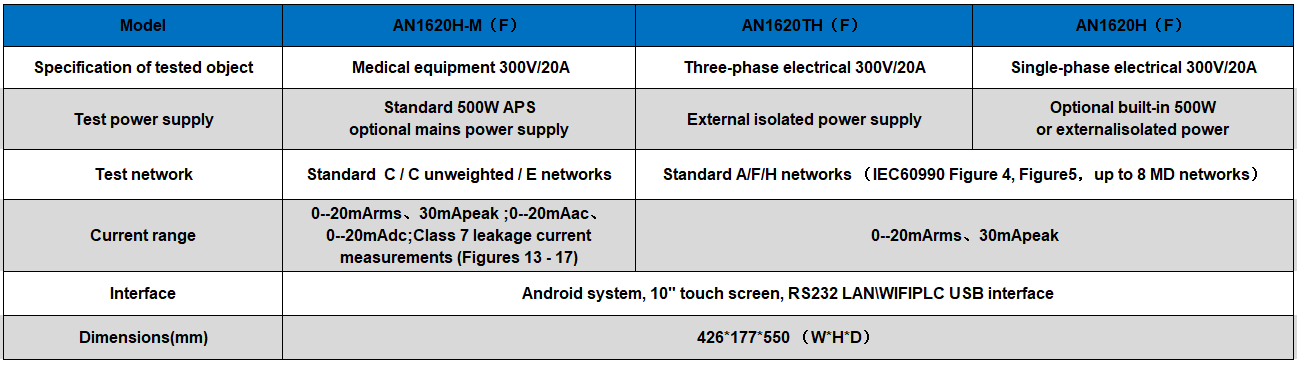

Technical specifications
ModelAN1620TH(F)AN1620H(F)AN1620H-M(F)
DUT SpecificationsSingle-phase/Three-phase 300V/20ASingle-phase 300V/20ASingle-phase 300V/20A
Test Power SupplyOptional external isolated power supplyOptional built-in 500W power supply or external power supplyAuxiliary power supply and DUT power supply                    (Optional external power supply)
Test NetworkStandard three networks: A/F/H, up to 8 optional networksStandard C/C unweighted/E medical equipment dedicated network
Current Range2-20mArms, 30mApeak0-20mArms,0-20mAac/Adc; 30mApeak; Patient, case, ground leakage current; Built-in S switch state setting;                    One-click automatic settings following GB9706.1/1EC60601-1 standard
Impedance and Frequency ResponseDC, 10Hz - 1MHz
Power MeasurementOptional: 300V/20A power measurement per phase, with accuracy of 0.5%

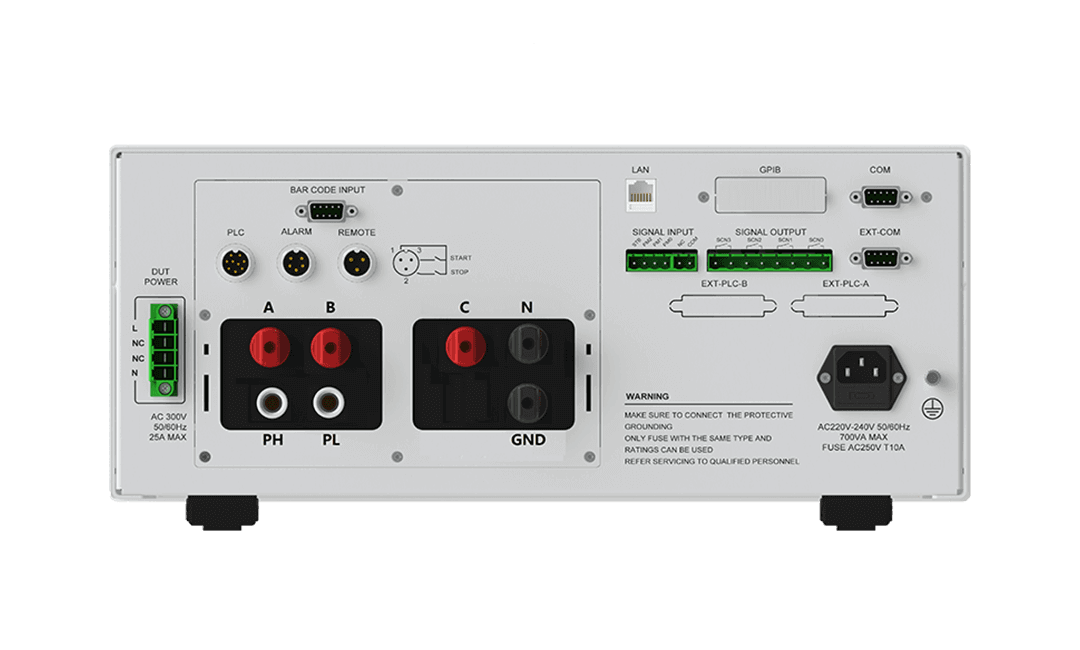

Operation InterfaceAndroid system, 10" touchscreen, RS232LANPLCUSB interface
Dimensions (W*H*D mm)462*177*550
