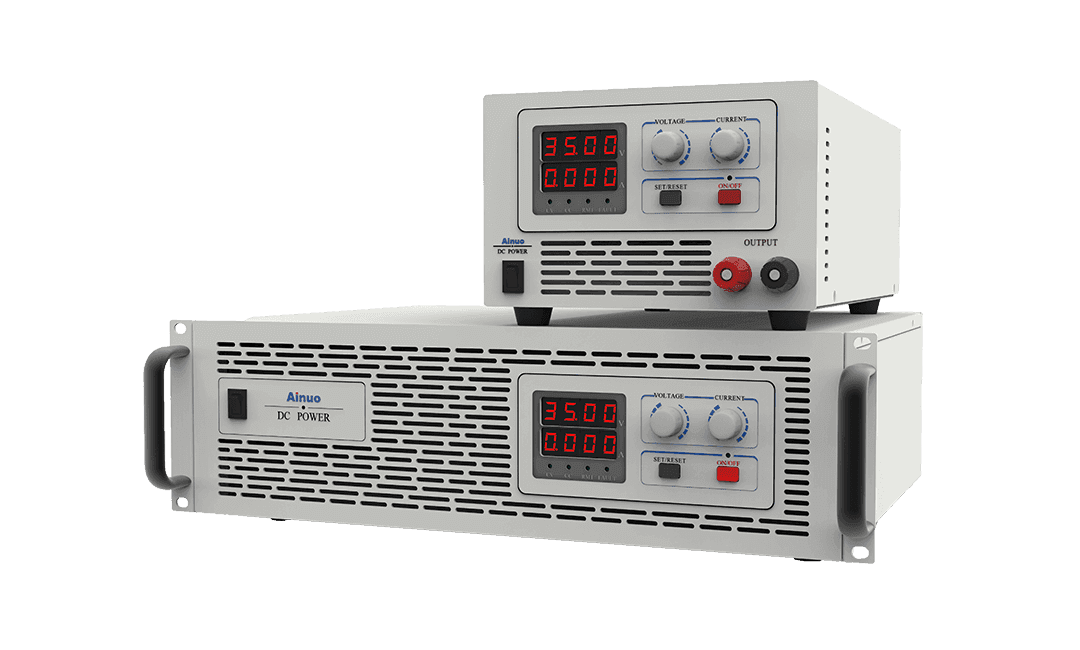

AN50(F) small power voltage-stabilized DC power supply adopts high-frequency PWM control and full-bridge converter technology to feature fast dynamic response, strong overcurrent capability, and low output ripple. It has the advantages of small size, low weight, low noise, high efficiency, and simple operation, making it a cost-effective power supply. It can be used for the manufacturing, testing, and maintenance of special electronic equipment such as motors, power tools, automotive electronics, braking-closing coils, and DC switches, while being used in industrial and mining enterprises, college laboratories, and research institutes, among others.
The full range of standard chassis, with a depth of only 350mm, is suitable for system integration and portable applications.
The adopted high-frequency PWM and full-bridge converter technology makes the machine more efficient.
It supports up to 110% current/power overload.
It also has excellent output stability.
The lead voltage drop compensation terminal enables output lead voltage drop compensation for high-current operation.
The complete protection function can ensure the normal operation of the power supply equipment and the safety of the load.
The Nixie tube display is available. It is simple, intuitive, and user-friendly.
It supports SCPI and MODBUS-RTU standard communication protocols.
| Model | Voltate | Current | Power |
| AN5010-100(F) | 10V | 100A | 1000W |
| AN5035-30(F) | 35V | 30A | 1000W |
| AN5035-50(F) | 35V | 50A | 1500W |
| AN5035-100(F) | 35V | 100A | 3000W |
| AN5035-170(F) | 35V | 172A | 6000W |
| AN5035-285(F) | 35V | 286A | 10000W |
| AN5035-570(F) | 35V | 572A | 20000W |
| AN5060-25(F) | 60V | 25A | 1500W |
| AN5060-50(F) | 60V | 50A | 3000W |
| AN5080-75(F) | 80V | 75A | 6000W |
| AN5080-125(F) | 80V | 125A | 10000W |
| AN5080-250(F) | 80V | 250A | 20000W |
| AN50120-12(F) | 120V | 12.5A | 1500W |
| AN50120-25(F) | 120V | 25A | 3000W |
| AN50120-50(F) | 120V | 50A | 6000W |
| AN50120-80(F) | 120V | 84A | 10000W |
| AN50120-165(F) | 120V | 167A | 20000W |
| AN50300-5(F) | 300V | 5A | 1500W |
| AN50300-10(F) | 300V | 10A | 3000W |
| AN50300-20(F) | 300V | 20A | 6000W |
| AN50300-30(F) | 300V | 34A | 10000W |
| AN50300-65(F) | 300V | 67A | 20000W |
| AN50600-10(F) | 600V | 10A | 6000W |
| AN50600-17(F) | 600V | 17A | 10000w |
| AN50600-30(F) | 600V | 34A | 20000W |
| AN50700-9(F) | 700V | 9A | 6000w |
| AN50700-14(F) | 700V | 14.5A | 10000W |
| AN50700-29(F) | 700V | 29A | 20000W |
| AN501200-17(F) | 1200V | 17A | 20000W |
| AN501400-14(F) | 1400V | 14A | 20000W |

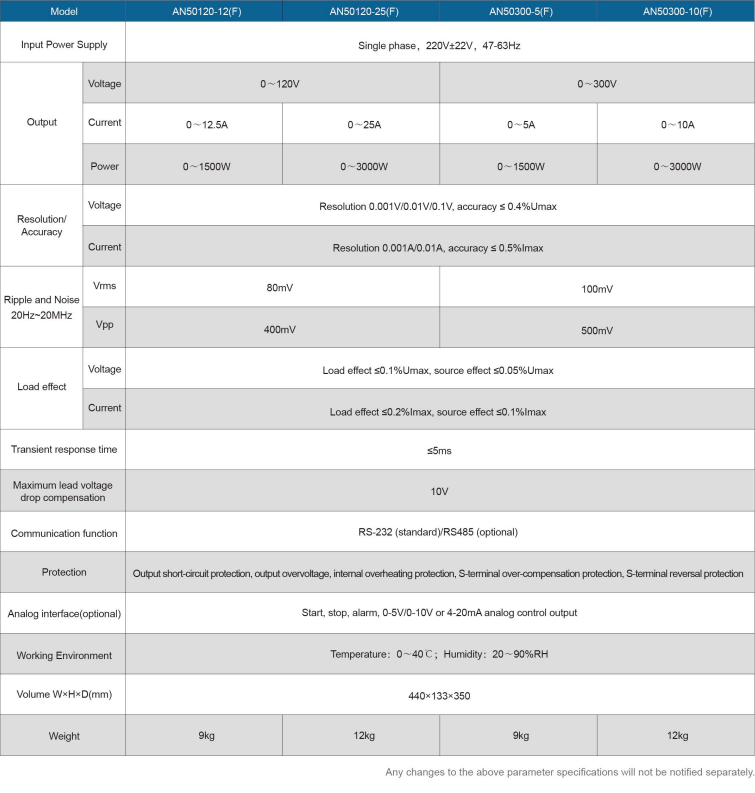

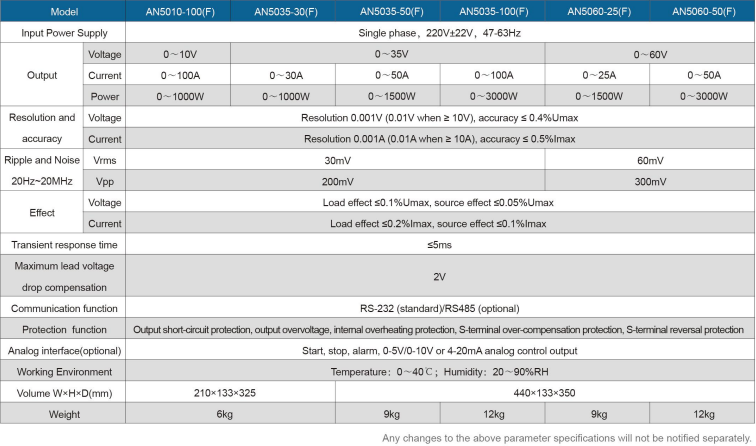

| Model | AN5010-100(F) | AN5035-30(F) | AN5035-50(F) | AN5035-100(F) | AN5060-25(F) | AN5060-50(F) | AN50120-12(F) | AN50120-25(F) | AN50300-5(F) | AN50300-10(F) | |
| Input Power Supply | Single-phase, 220V±22V, 47-63Hz | ||||||||||
| Output | Voltage | 0-10V | 0-35V | 0-60V | 0-120V | 0-300V | |||||
| Current | 0-100A | 0-30A | 0-50A | 0-100A | 0-25A | 0-50A | 0-12.5A | 0-25A | 0-5A | 0-10A | |
| Power | 0-1000W | 0-1000W | 0-1500W | 0-3000W | 0-1500W | 0-3000W | 0-1500W | 0-3000W | 0-1500W | 0-3000W | |
| Resolution & Accuracy | Voltage | Resolution 0.001V (0.01V when ≥ 10V), accuracy ≤ 0.4%Umax | Resolution 0.001V/0.01V/0.1V, accuracy ≤ 0.4%Umax | ||||||||
| Current | Resolution 0.001A (0.01A when ≥ 10A), accuracy ≤ 0.5%Imax | Resolution 0.001A/0.01A, accuracy ≤ 0.5%Imax | |||||||||
| Ripple and Noise 20Hz~20MHz | Vrms | 30mV | 60mV | 80mV | 100mV | ||||||
| Vpp | 200mV | 300mV | 400mV | 500mV | |||||||
| Effect | Voltage | Load effect ≤0.1%Umax, source effect ≤0.05%Umax | |||||||||
| Current | Load effect ≤0.2%Imax, source effect ≤0.1%Imax | ||||||||||
| Transient Response Time | ≤5ms | ||||||||||
| Maximum Lead Voltage Drop Compensation | 2V | ||||||||||
| Communication Function | Standard:RS232/RS485/LAN | ||||||||||
| Protection Function | Output short-circuit protection, output overvoltage/internal overheating protection, S-terminal over-compensation protection, S-terminal reversal protection | ||||||||||
| Analog Interface(optional) | Start, stop, alarm, 0-5V/0-10V or 4-20mA analog control output | ||||||||||
| Working Environment | Temperature:0~40℃;Humidity:20~90%RH | ||||||||||
| Volume(W*H*D mm) | 210*133*325 | 440*133*350 | |||||||||
| Weight | 6kg | 9kg | 12kg | 9kg | 12kg | 9kg | 12kg | 9kg | 12kg | ||

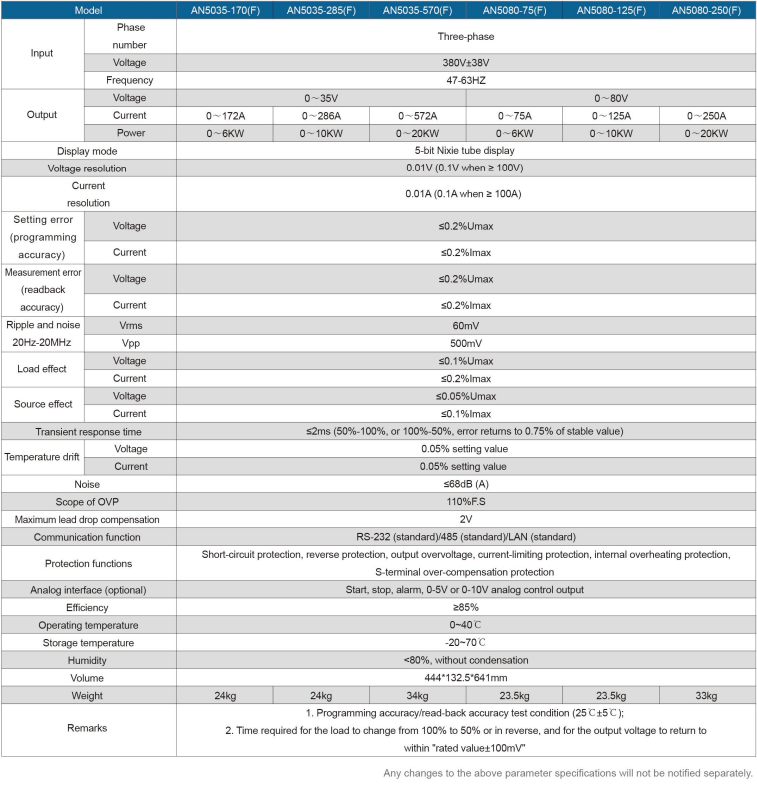

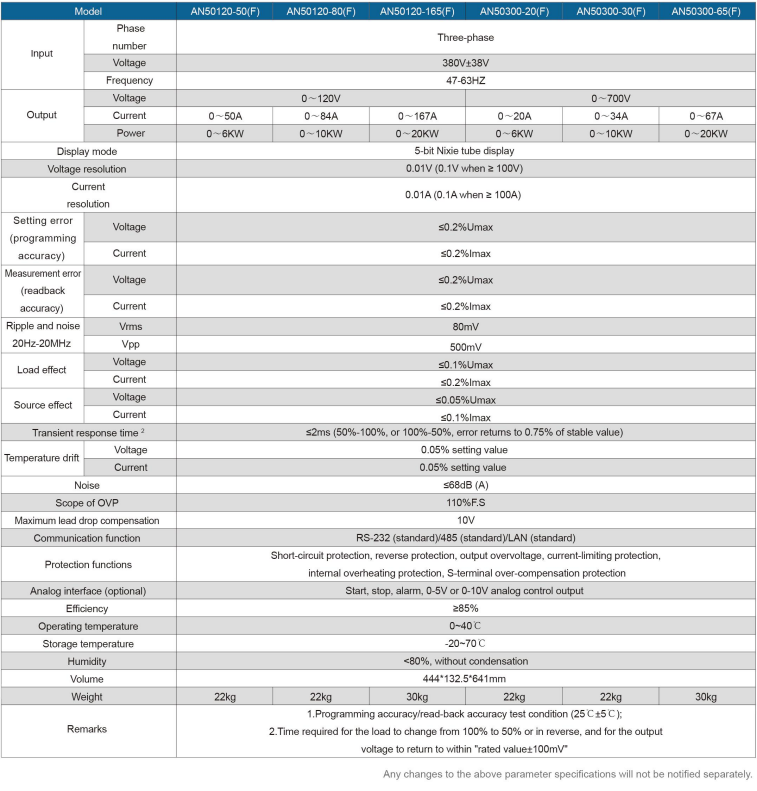

| Model | AN5035-170(F) | AN5035-285(F) | AN5035-570(F) | AN5080-75(F) | AN5080-125(F) | AN5080-250(F) | AN50120-50(F) | AN50120-80(F) | AN50120-165(F) | AN50300-20(F) | |
| Input | Phase Number | Three Phase | |||||||||
| Voltage | 380±38V | ||||||||||
| Frequency | 47-63HZ | ||||||||||
| Output | Voltage | 0-35V | 0-80V | 0-120V | 0-300V | ||||||
| Current | 0-172A | 0-286A | 0-572A | 0-75A | 0-125A | 0-250A | 0-50A | 0-84A | 0-167A | 0-20A | |
| Power | 0-6kW | 0-10kW | 0-20kW | 0-6kW | 0-10kW | 0-20kW | 0-6kW | 0-10kW | 0-20kW | 0-6kW | |
| Display Mode | 5-bit Nixie tube display | ||||||||||
| Setting Error (Programming Accuracy)* | Voltage | ≤0.2%Umax | |||||||||
| Current | ≤0.2%Imax | ||||||||||
| Measurement Error (Readback Accuracy) | Voltage | ≤0.2%Umax | |||||||||
| Current | ≤0.2%Imax | ||||||||||
| Resolution | Voltage | 0.01V (0.1V when ≥ 100V) | |||||||||
| Current | 0.01A (0.1A when ≥ 100A | ||||||||||
| Ripple and Noise 20Hz~20MHz | Vrms | 60mV | 80mV | ||||||||
| Vpp | 500mV | ||||||||||
| Effect | Voltage | Load effect ≤0.1%Umax; Source effect ≤0.05%Umax | |||||||||
| Current | Load effect ≤0.2%Imax, source effect ≤0.1%Imax | ||||||||||
| Transient Response Time * | ≤2ms (50%-100%, or 100%-50%, error returns to 0.75% of stable value) | ||||||||||
| Noise | ≤68dB(A) | ||||||||||
| Scope of OVP | 110%F.S | ||||||||||
| Maximum Lead Voltage Drop Compensation | 2V | 10V | |||||||||
| Communication Function | Standard:RS232/RS485/LAN | ||||||||||
| Protection Function | Short-circuit protection, reverse protection, output overvoltage/current-limiting protection, internal overheating protection, S-terminal over-compensation protection | ||||||||||
| Analog Interface(optional) | Start, stop, alarm, 0-5V or 0-10V analog control output | ||||||||||
| Efficiency | ≥85% | ||||||||||
| Operation Temperature | 0-40℃ | ||||||||||
| Storage Temperature | -20-70℃ | ||||||||||
| Humidity | <80%, without condensation | ||||||||||
| Volume(W*H*D mm) | 444*132.5*641 | ||||||||||
| Weight | 24kg | 24kg | 34kg | 23.5kg | 23.5kg | 33kg | 22kg | 22kg | 30kg | 22kg | |
| Remarks | *1:Programming accuracy/read-back accuracy test condition (25℃±5℃); *2. Time required for the load to change from 100% to 50% or in reverse, and for the output voltage to return to within "rated value±100mV" | ||||||||||

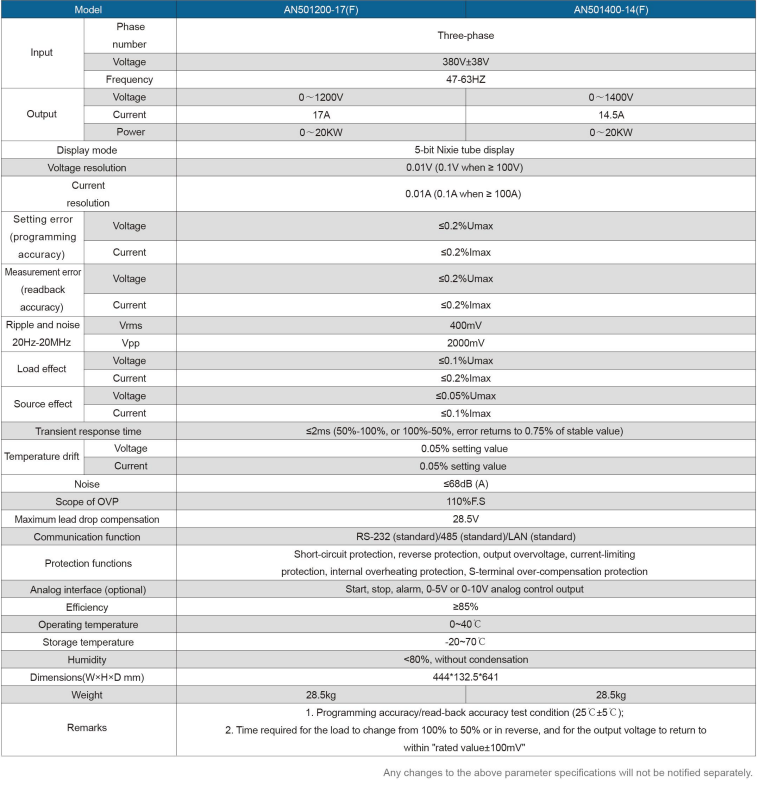

| Model | AN50300-30(F) | AN50300-65(F) | AN50600-10(F) | AN50600-17(F) | AN50600-30(F) | AN50700-9(F) | AN50700-14(F) | AN50700-29(F) | AN501200-17(F) | AN501400-14(F) | |
| Input | Phase Number | Three Phase | |||||||||
| Voltage | 380±38V | ||||||||||
| Frequency | 47-63HZ | ||||||||||
| Output | Voltage | 0-300V | 0-600V | 0-700V | 0-1200V | 0-1400V | |||||
| Current | 0-34A | 0-67A | 0-10A | 0-17A | 0-34A | 0-9A | 0-14.5A | 0-29A | 0-17A | 0-14.5A | |
| Power | 0-10kW | 0-20kW | 0-6kW | 0-10kW | 0-20kW | 0-6kW | 0-10kW | 0-20kW | 0-20kW | 0-20kW | |
| Display Mode | 5-bit Nixie tube display | ||||||||||
| Setting Error (Programming Accuracy)* | Voltage | ≤0.2%Umax | |||||||||
| Current | ≤0.2%Imax | ||||||||||
| Measurement Error (Readback Accuracy) | Voltage | ≤0.2%Umax | |||||||||
| Current | ≤0.2%Imax | ||||||||||
| Resolution | Voltage | 0.01V (0.1V when ≥ 100V) | |||||||||
| Current | 0.01A (0.1A when ≥ 100A | ||||||||||
| Ripple and Noise 20Hz~20MHz | Vrms | 80mV | 200mV | 400mV | |||||||
| Vpp | 400mV | 1000mV | 2000mV | ||||||||
| Effect | Voltage | Load effect ≤0.1%Umax; Source effect ≤0.05%Umax | |||||||||
| Current | Load effect ≤0.2%Imax, source effect ≤0.1%Imax | ||||||||||
| Transient Response Time * | ≤2ms (50%-100%, or 100%-50%, error returns to 0.75% of stable value) | ||||||||||
| Noise | ≤68dB(A) | ||||||||||
| Scope of OVP | 110%F.S | ||||||||||
| Maximum Lead Voltage Drop Compensation | 10V | 10V | 28.5V | ||||||||
| Communication Function | Standard:RS232/RS485/LAN | ||||||||||
| Protection Function | Short-circuit protection, reverse protection, output overvoltage/current-limiting protection, internal overheating protection, S-terminal over-compensation protection | ||||||||||
| Analog Interface(optional) | Start, stop, alarm, 0-5V or 0-10V analog control output | ||||||||||
| Efficiency | ≥85% | ||||||||||
| Operation Temperature | 0-40℃ | ||||||||||
| Storage Temperature | -20-70℃ | ||||||||||
| Humidity | <80%, without condensation | ||||||||||
| Volume(W*H*D mm) | 444*132.5*641 | ||||||||||
| Weight | 24kg | 30kg | 21kg | 21kg | 28.5kg | 21kg | 21kg | 28.5kg | 28.5kg | 28.5kg | |
| Remarks | *1:Programming accuracy/read-back accuracy test condition (25℃±5℃); *2. Time required for the load to change from 100% to 50% or in reverse, and for the output voltage to return to within "rated value±100mV" | ||||||||||
