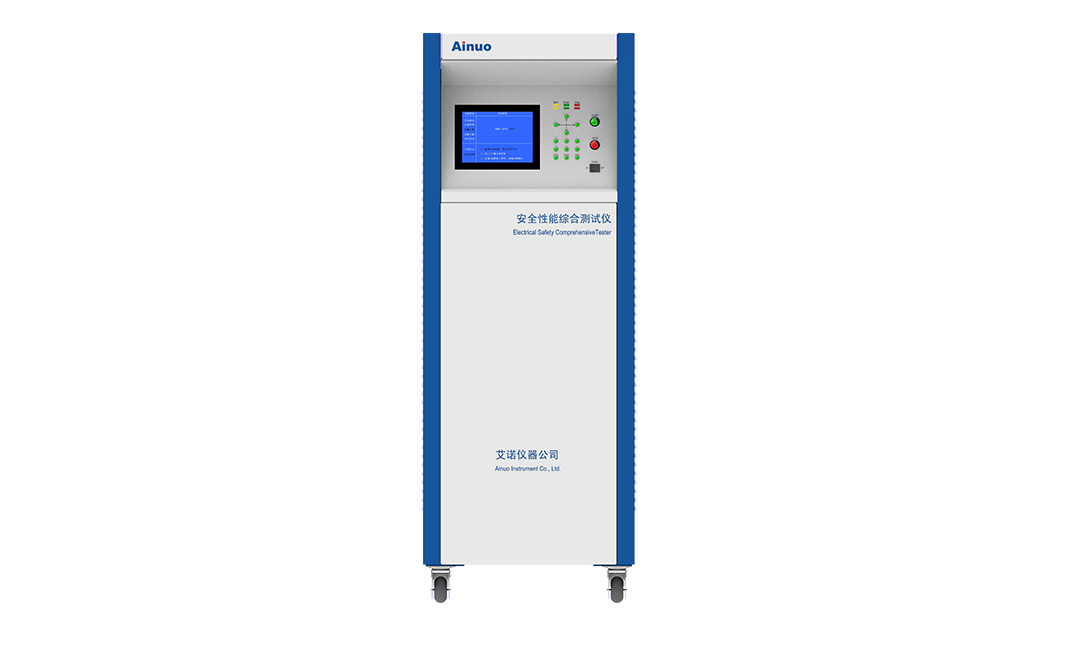

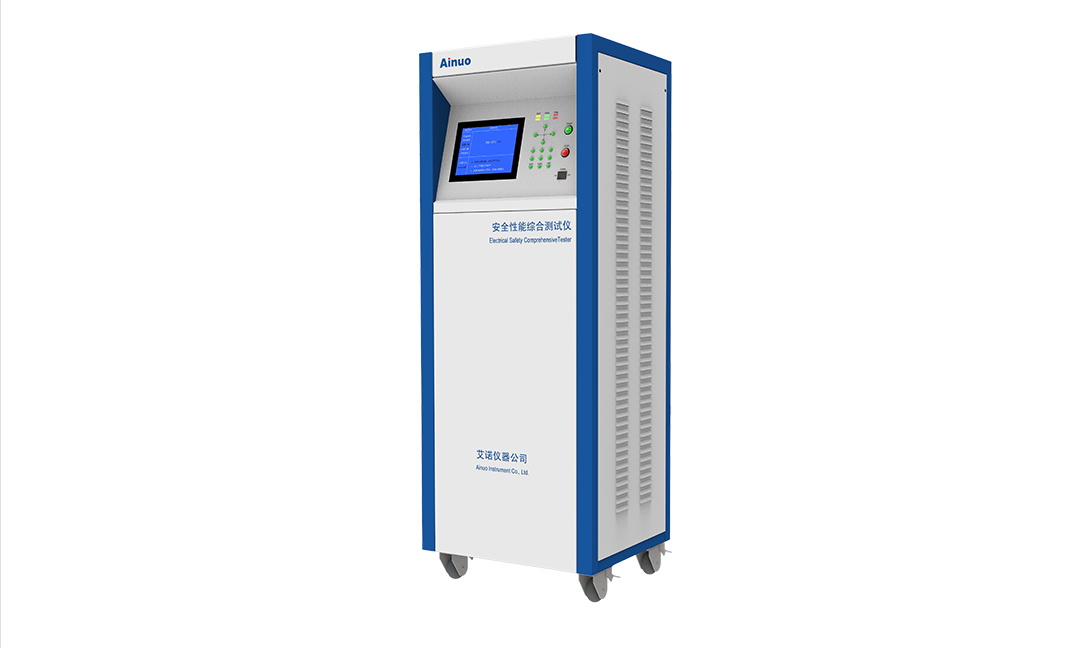

Three-phase Electrical Safety Comprehensive Tester
Product Model:
AN9651TH(F) Series
Application:
uitable for safety testing of line, labs, quality inspection department of electrical appliances such as central air conditioning, commercial heaters, commercial kitchen utensils and others.
Product overview Product features Product application technical specifications
Product overview

This AN9651TH(F) series electrical safety comprehensive tester has eight-in-one testing (ground bond resistance/insulation resistance/AC withstand voltage/DC withstand voltage/leakage current/power parameters/start-up/waiting), compatible three/single-phase loads, suitable for safety testing of line, labs, quality inspection department of electrical appliances such as central air conditioning, commercial heaters, commercial kitchen utensils and others.

Product features

l  Multi industrial standards: comply with CCC, IEC, EN, VDE, BS, UL, JIS and other mandatory electrical safety standards. 200mA or higher short-circuit output current for 500VA withstand voltage (AC 5kV/100mA). Built-in replaceable MD card for leakage contact current test network, suitable for various industrial standards for different MD.

l  Complete functions: AC withstand voltage, DC withstand voltage, insulation resistance, ground bond resistance, leakage current, operating power, low-voltage start and waiting.

l  Multi power supply: built-in isolated power unit, automatically control of power supply of the product under test; external variable frequency power supply for testing online. Optional three-phase isolation transformers or variable frequency power supply and U.S. standard power supply of various specifications (20kVA/45kVA/60kVA/90kVA).

l  Intelligent test: 15 groups of memory of test conditions, 8-step programming for each group; one-key start to complete all tests.

l  Automatic control: interfaces for RS232/RS485/LAN (optional), barcode scanner, variable frequency power supply control, digital control, easy to configure automatic test systems.

l  Information management: optional PC and ESRS software for barcode recognition, data management, MES connection.

l  Simple operation: 10.4” TFT color screen, menu operation, Chinese/English dispaly, socket-type test tooling.

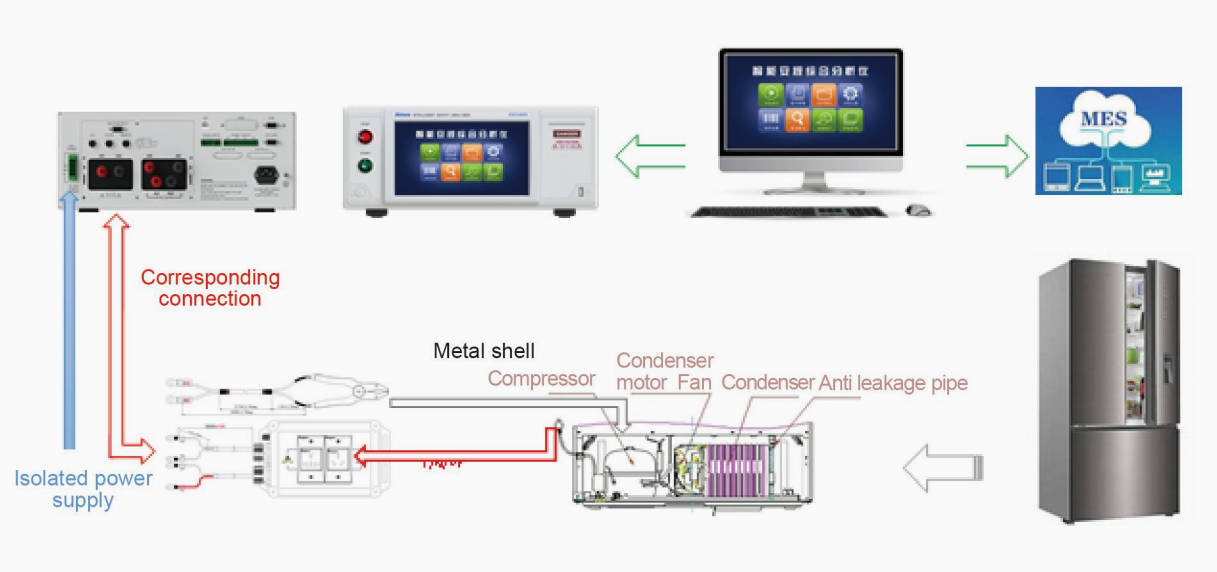

Product application

uitable for safety testing of line, labs, quality inspection department of electrical appliances such as central air conditioning, commercial heaters, commercial kitchen utensils and others.

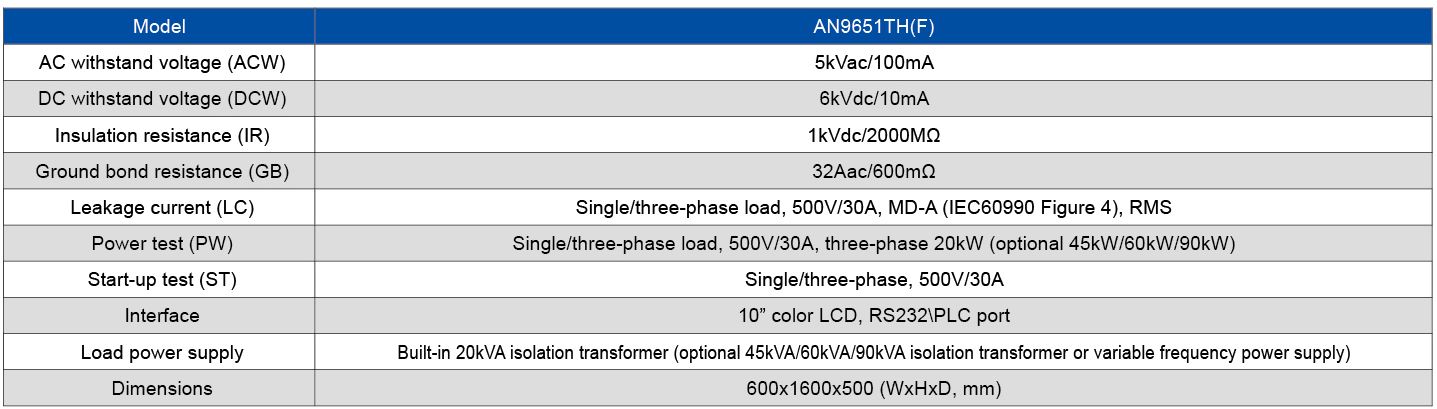

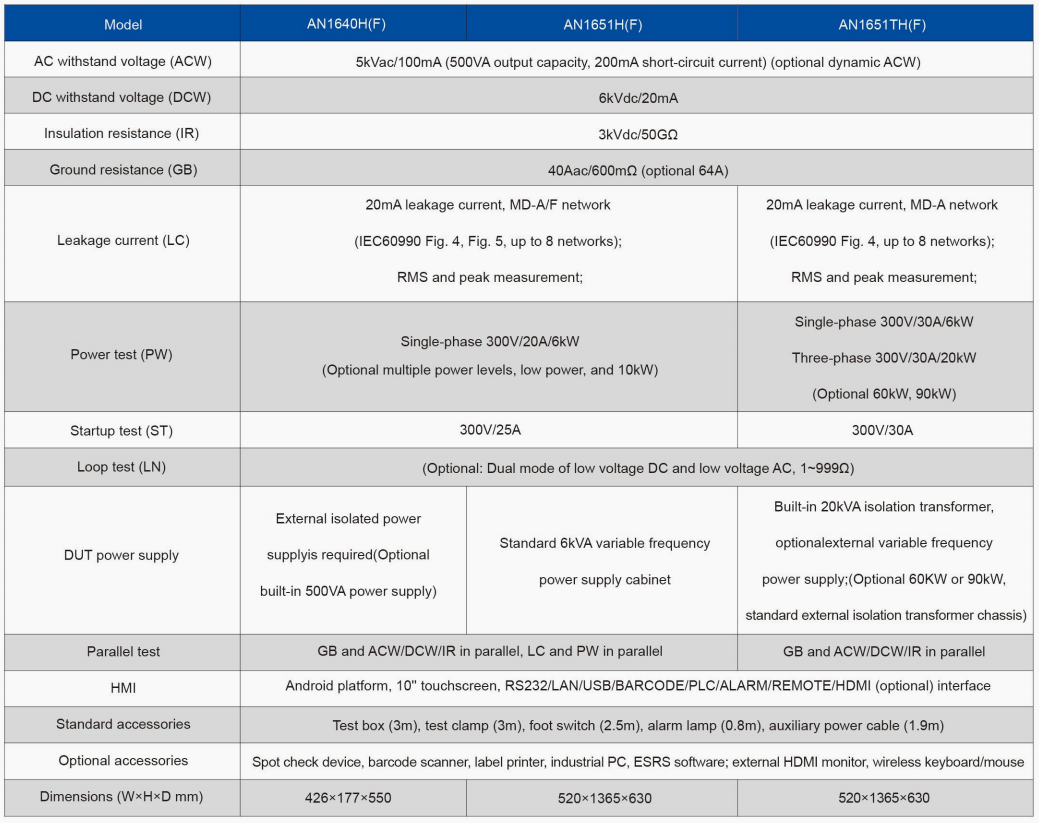

Technical specifications
