New Energy Vehicle Safety Tester

Product Model:
AN1662H(F)/AN1662SD(F) /AN1660B(F)
Application:
Strict industrial field type test, high temperature aging chamber test, household appliances, commercial electrical appliance production line standby power measurement, power tool test, lighting test
Product overview Product features Product application technical specifications
Product overview

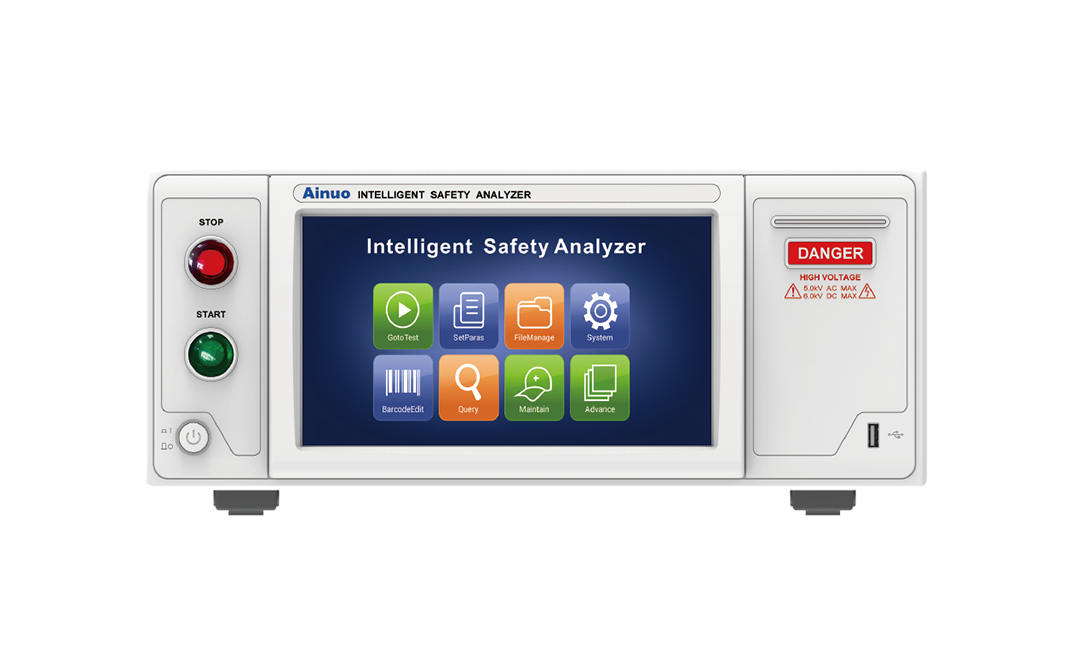

This AN1662H(F) new energy vehicle safety compliance analyzer and AN1662SD(F) test system comply with GB18384-2020 electric vehicle safety requirements and GB38032-2020 Electric buses safety requirements. AN1660B(F) New Energy Vehicle Operational Safety Analyzer is designed to meet the requirements of the operational safety performance inspection regulations for new energy vehicles.

This AN1662H(F) new energy vehicles safety compliance analyzer features whole vehicle insulation, insulation resistance, insulation resistance, insulation monitoring, and potential equalization test functions. It can be equipped with additional features such as AC withstand voltage, DC withstand voltage, and DC low resistance. It supports multi-channel withstand voltage and multi-channel poten-tial equalization scanning tests. By using test accessoriessuch as AC charging gun, DC charging gun, platform testclip, high-voltage component test clip, etc. It can completethe test connections in one go and automatically ormanually perform each step of the safety regulation test.

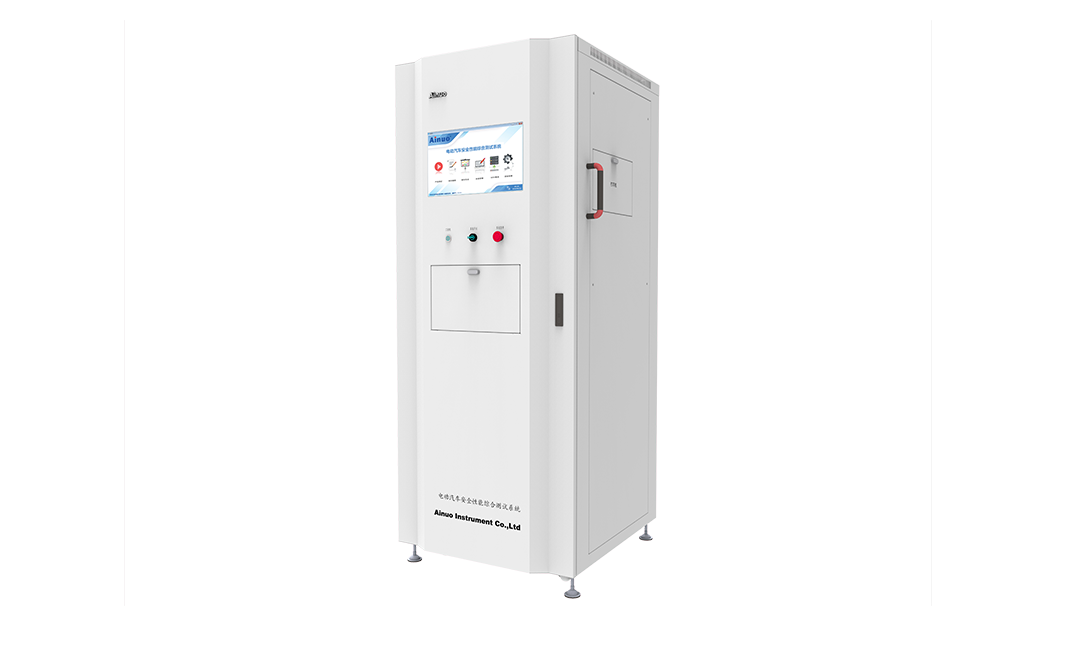

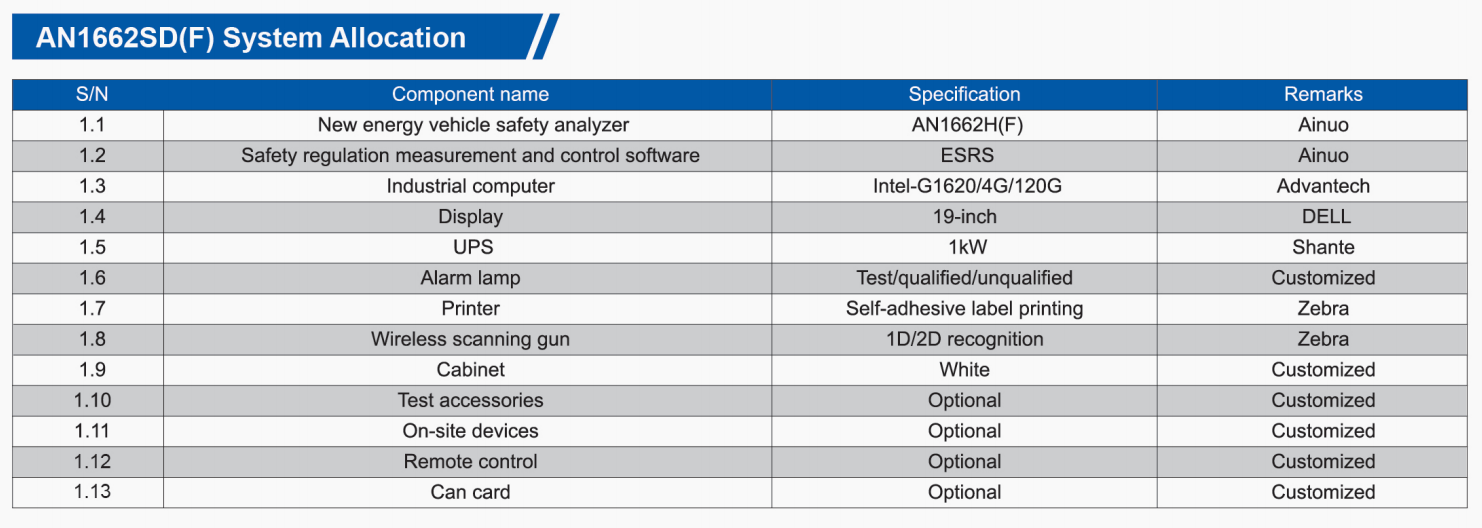

The AN1662SD(F) Test System integrates the testfunctions of AN1662H(F).Through industrial comput-er/ESRS measurement and control software, on-sitedevice and remote control test, it realizes the automatedinformatized, and intelligent test process for new energyvehicle safety regulation.

Download Latest Product Catalog

Product features

System Digitistics

Four-in-one safety regulation test for electric vehicles, with excellent system scalability.

One master unit integrating multiple functions for fasttesting speed and high accuracy for safety analyzer.

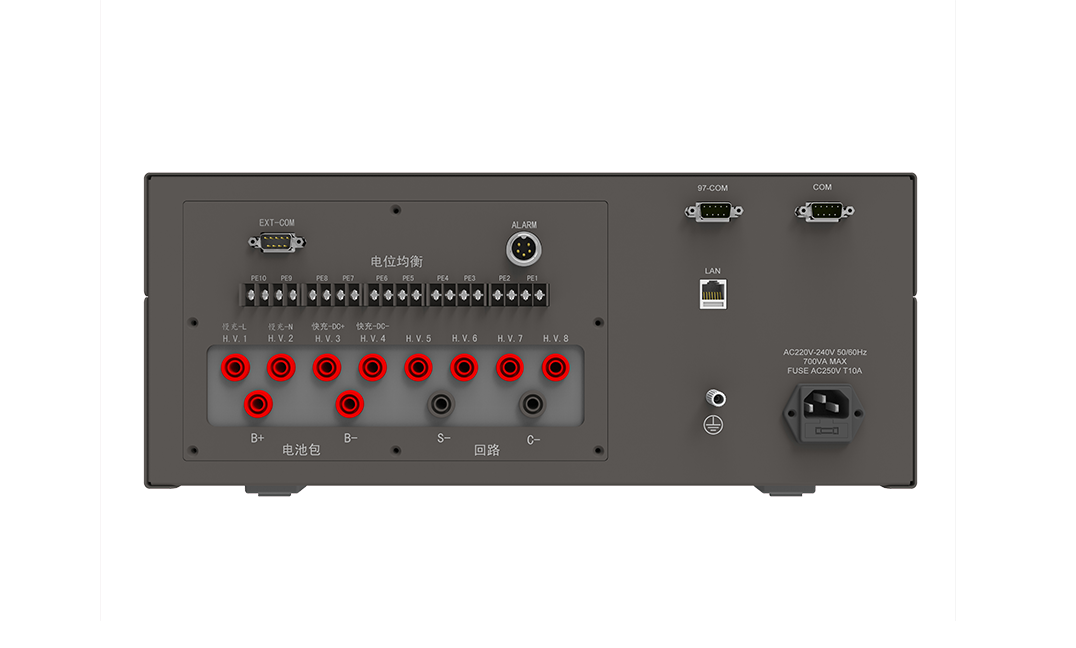

Multi-channel scanning and one-time wiring, capable of completing all safety tests items.

Hardware Features

Supports wireless scanning, automatic vehicle model recognition, and automatic retrieval of test programs.

Supports CAN communication and automatically presets vehicle status based on the test item.

Customized dedicated test on-site devices, remote contropanels, and testing accessories.

Software Features

Workflow setting for electric vehicle safety test items, supporting a mix of automatic and manual tests.

Local storage of test information with no limit on the number of saved records during the product's lifecycle.

Multiple MES database connections reserved for test condition download and test data upload.

Software measurement and control system supports data query, filtering, and export, as well as user permission management.


Product application

This AN1662H(F) new energy vehicle safety compliance analyzer and AN1662SD(F) test system comply with GB18384-2020 electric vehicle safety requirements and GB38032-2020 Electric buses safety requirements.

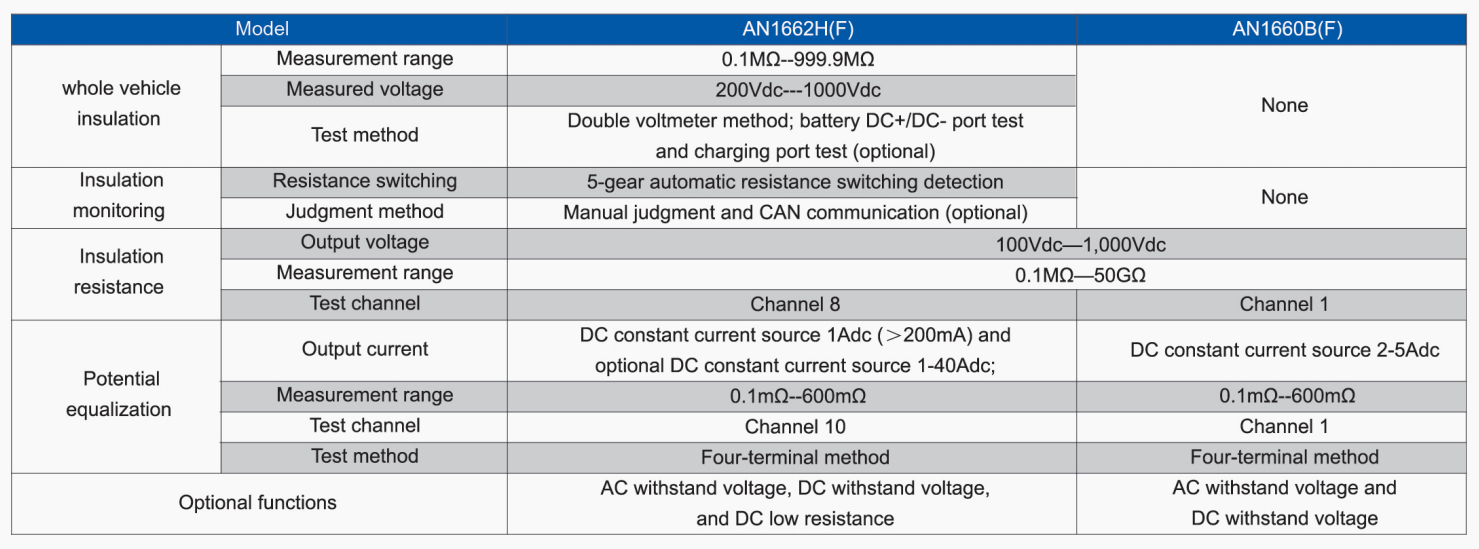

Technical specifications
