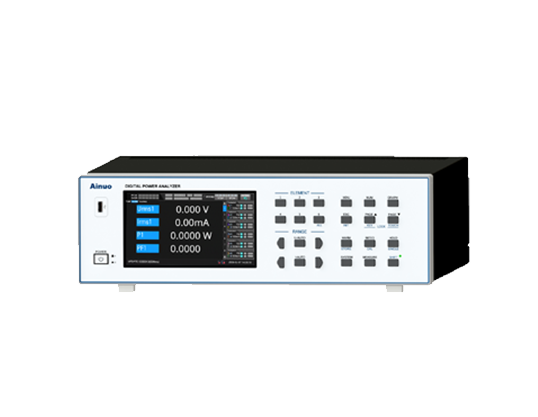

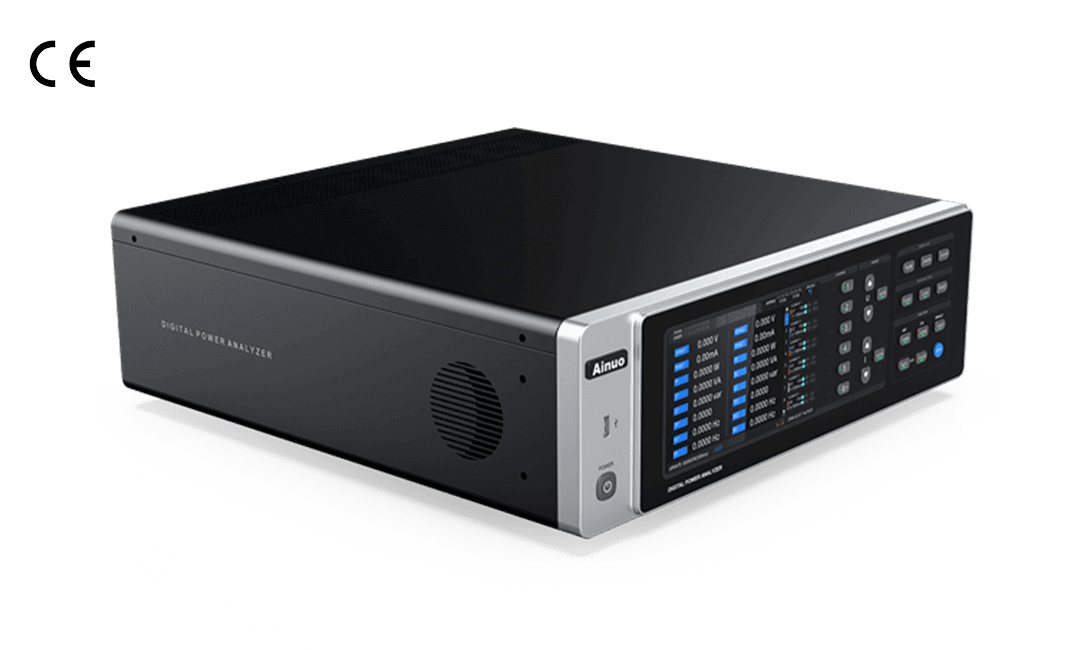

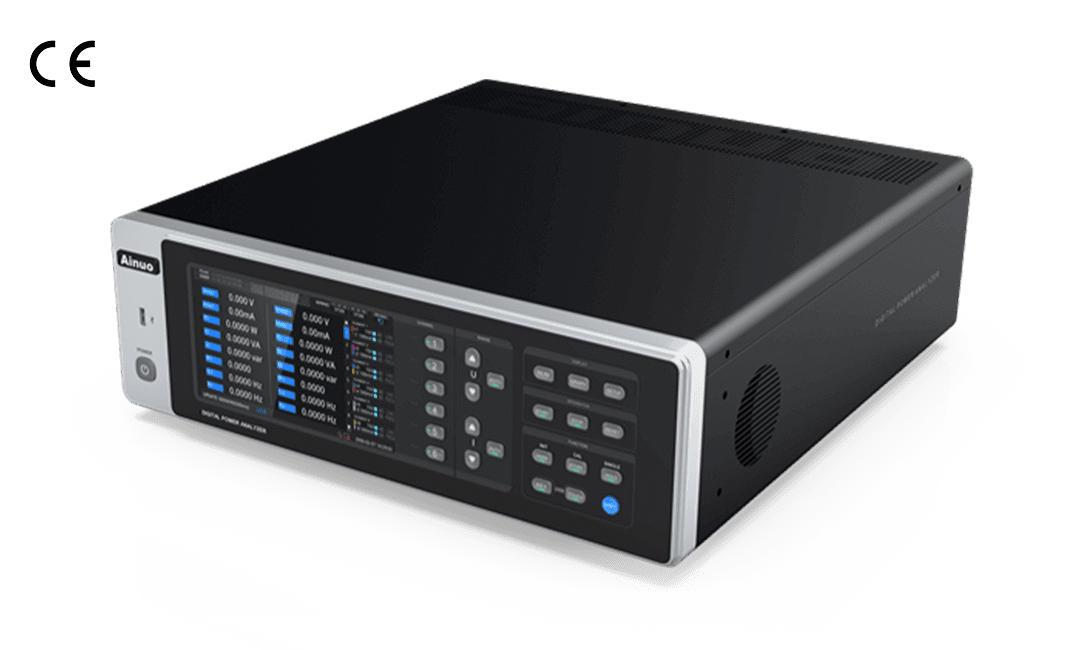

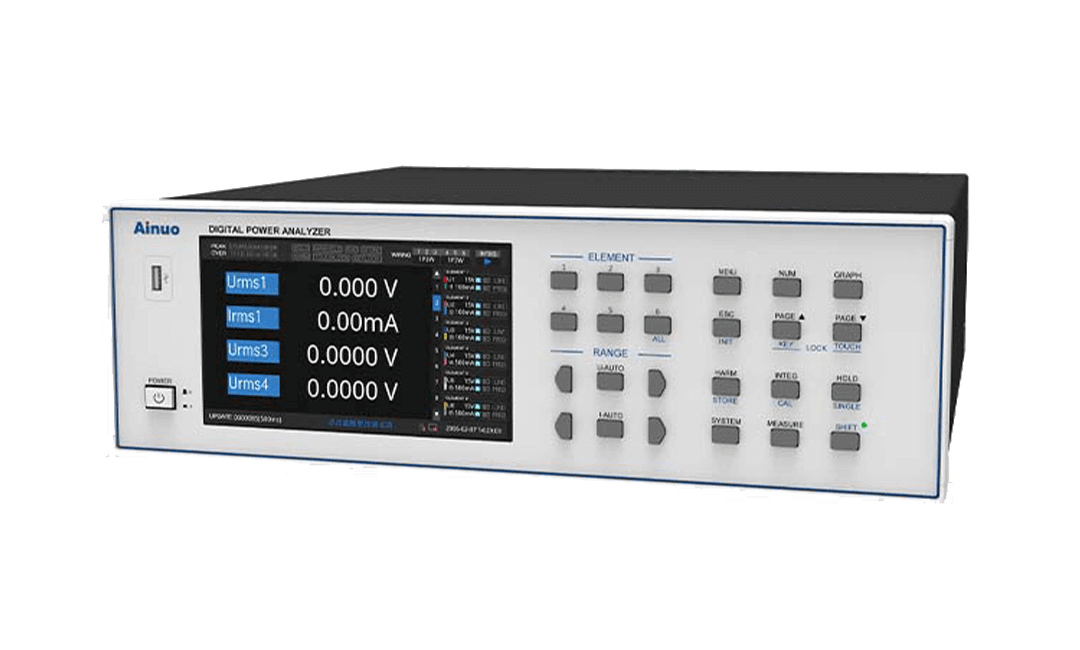

Multiple Channel Power Analyzer
Product Model:
AN87600(F) Series
Application:
Household Appliances, Commercial Appliances, Photovoltaic Inverters, Electric Vehicles, Charging Piles, Switching Power Supply, Transformer, Generator, Inverter, Variable Frequency Motor, Lighting, LED
Product overview Product features Product application technical specifications
Product overview

  Six-channel simultaneous power analysis

  Basic accuracy: ±0.1%

  Measurement bandwidth: DC, 0.5Hz~100kHz

  Acquisition rate: 200kSps

  Maximum voltage: standard 1000V, optional 1500V

  Maximum current: 50A/20A (standard)/10A/5A/2A/1A, support combination, optional sensor

  LCD display: Full touch screen, custom display items, wave display

  Data storage: Custom storage items, export in CSV format

  Perfect size: Standard 3U height, suitable for integration

  Man-machine OperationlStandby power consumption and power analysis of single-phase/three-phase household appliances and commercial appliances

  PV inverter power, efficiency, harmonic analysis.

  Electric vehicles, charging pile electrical performance test.

  Power electronics, transformers, generator power/harmonic analysis.

  Inverter, inverter motor power/harmonic analysis.

  Switching power supply power/harmonic/inrush current analysis.

  Lighting/LED power analysis


Product features

  Multi-channel: 1~6-channel synchronous measurement unit, flexibly configured as multi-channel single-phase, three-phase three × 2, three-phase four × 2, four-phase (DC + three-phase three) and other modes for measurement of various loads (air conditioners, inverters, frequency converters, motors);

  High precision: High-speed FPGA+ARM processor dual-core processing, 16-bit high-speed high-precision AD converter, accuracy of 0.1%, up to 100ms display update cycle;

  Wide power range: 20A current measurement (optional 50A/10A/5A/2A/1A and other specifications, support combination) per channel, minimum power resolution of 0.1mW, meeting the measurement requirements of standby power consumption and rated power;

  Wide broadband: AC/DC signal, power measurement bandwidth DC, 0.5~100kHz, suitable for various standard/non-standard sine wave load power measurement;

  Multi-channel harmonic analysis: Simultaneous harmonic analysis for six-channel, up to 50th harmonic measurement, distortion analysis, visual display of harmonic component of each order and total components;

  Multi-channel frequency measurement: Simultaneous frequency measurement for six channels;

  Line filtering: 500Hz, 5.5kHz low-pass filter is used to measure the fundamental wave of PWM wave and filter out the high-frequency interference of switching power supply current;

  Sensor: Ratio function, normal I-I, V-V voltage/current transformers; I-V current sensors with BNC interface, maximum input voltage of 10V, optional high current sensors;

  Efficiency calculation: Measurement of input/output energy consumption of the equipment at the same time, and calculate its efficiency;

  Electric energy accumulation: accumulate forward/reverse electric energy and comprehensive electric energy separately, and measure electric energy for sale and purchase.

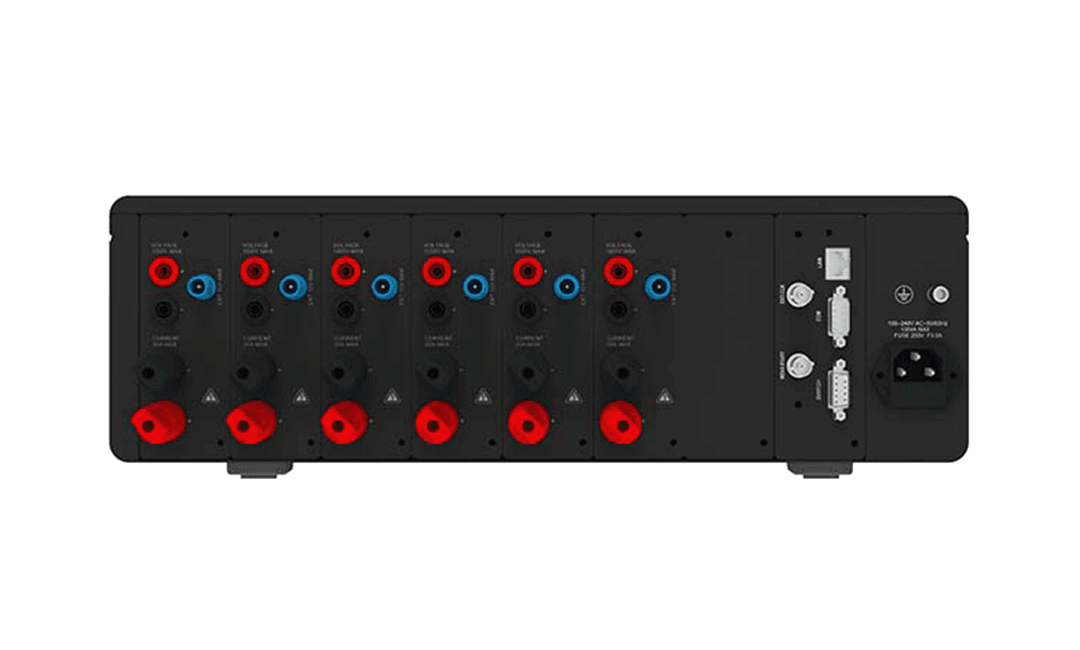

  Channel configurationThe multi-channel power analyzer can support a variety of wiring methods, including 1P2W, 1P3W, 3P3W, 3V3A, 3P4W, etc.




Product application



PV inverter power measurement

  • Meet GB/T 37409-2019 Testing specifications for photovoltaic grid-connected inverter

  • Voltage 0~1500V

  • Current: 0~50A/current sensor.

  • Simultaneous measurement of input/output (single-phase/three-phase) power and power factor

  • Automatic efficiency calculation

  • 50th harmonic and distortion analysis

  • Two-way power measurement for buying and selling electricity



Electric vehicle electrical performance measurement

  • Multi-channel to test multi parameters simultaneously: charging station performance, battery charge/discharge performance, power conversion performance, motor performance, etc.

  • AC/DC, maximum current of 50A, extended to larger current sensors.

  • High precision, basic accuracy of 0.1%, minimum power resolution of 0.1mW.

  • Measure AC/DC signal instantaneous RMS, average, peak, electric energy and so on.


Inverter motor, frequency converter power measurement

  • Meet GB12668 standard.

  • Power bandwidth DC, 0.5Hz~100kHz

  • Current: 0~50A/current sensor.

  • Simultaneously measure input and output power

  • 50th harmonic and distortion analysis

Power supply, UPS power measurement

  • Current: 0~1A/2A/5A/10A/20A/50A

  • Power bandwidth DC, 0.5Hz~100kHz

  • Simultaneous measuring input/output (single-phase, three-phase) power, monitoring battery charge/discharge.

  • Automatic efficiency calculation

Home appliance performance evaluation, standby power consumption measurement

  • Meet IEC 62301-2011 standard.

  • Current: 0~1A/2A/5A/10A/20A/50A, measurement of rated power and standby power

  • Minimum power resolution: 0.1mW

  • 50th harmonic and distortion analysis

Lighting, LED power measurement

  • Current: 0~1A/2A/5A/10A

  • Minimum power resolution: 0.1mW

  • Measurement of drive power input/output power, power factor, efficiency

  • 50th harmonic and distortion analysis


Technical specifications
