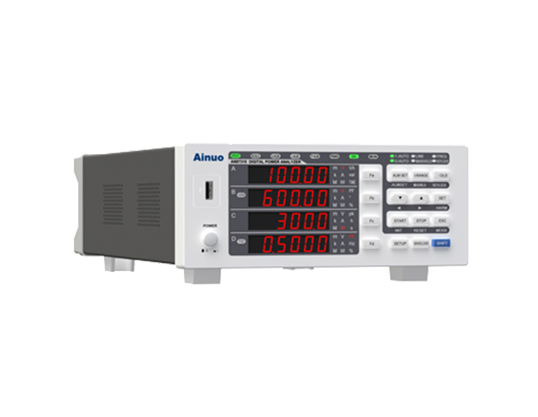

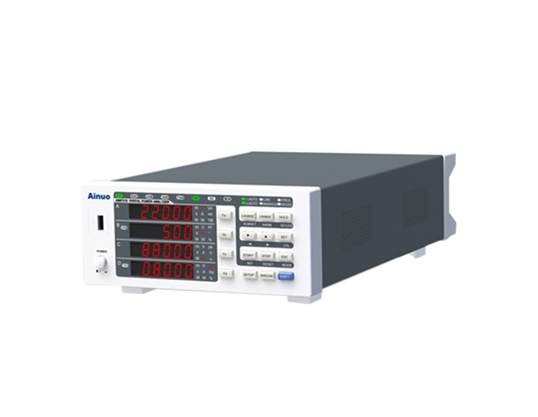

AC/DC Single-phase Power Analyzer

Download Latest Product Catalog

AN87310(F) AC/DC single phase power analyzer adopts STM32 controller as the core and supplemented by FPGA, using direct sampling and intelligent identification technology, widely used in electrical measurements of single-phase electrical equipment, such as voltage, current, power, power factor, frequency, electrical energy, time, harmonics etc., wide range, 4-window LED highlight, simple operation, U disk read/write, serial communication, parameter alarm, voltage/current ratio settings and other functions, multi-purpose, professional and reliable.

Back panel connector detail display

• Universal wide-range design for AC/DC, DC~100kHz bandwidth, stronger load adaptability

• Reliable, stable, compact, light

• Fast measurement, refresh rate up to 0.1s

• Standard RS-232 or RS-485 port, supports MODBUS communication, and automatic testing

• Strict industrial site type test

• High temperature aging room test

• Power tool test

• Lighting test

• power measurement of household appliances and commercial appliance lines

• Current: 1mA~22A/5mA~55A, voltage: 0.15~1200V, rated power and standby power can be measured

• Minimum power resolution: 0.1mW

• 50th harmonic and distortion analysis
