Lithium Battery Intelligent Safety Regulation Analyzer

Product Model:
ANBTS7436H(F) | ANBTS7438H(F)
Application:
Power battery, energy storage battery series.
Product overview Product features Product application technical specifications
Product overview

The ANBTS743xH Series Intelligent Safety Regulation Comprehensive Analyzer from Ainuo Instrument Co., Ltd. combines functions such as AC withstand voltage, DC withstand voltage, insulation resistance, AC grounding, DC grounding, as well as auxiliary functions including voltage ramp-up and ramp-down, arc detection, capacitance test (Y-capacitor, open and short circuit detection).

Addressing the unique product features and test requirements of power batteries and energy storage batteries, the series of products have added special testing functions, including waveform display, grounding/floating ground, low-pass filtering, rapid discharge, residual voltage monitoring, and other special functions.

The series of products offer a wide range of measurement options, including AC withstand voltage 5kV/100mA, DC withstand voltage 6kV/20mA, insulation resistance 6kV/100GΩ, AC grounding 64A/600mΩ, and DC grounding 60A/600mΩ (rear panel plug-in card output), with multiple channel switching cards.

There is a front panel output terminal (Default setting does not include front panel output), optional rear panel output for DC grounding card.

Download Latest Product Catalog

Product features

Safe and Reliable

Main drafting unit of stage standards and verification regulations for safety testing  products.

Nearly 30 years of safety testing expertise and follow-up of industry needs.

Complete EMC, environmental, load, working conditions, and fatigue test verification.

Convenient and Efficient

Waveform display: parameter waveform display, supporting cursors, zoom, and playback.

Auxiliary functions: floating ground/grounding mode, low-pass filtering and residual voltage monitoring.

Quick measurement and control: Quick test, quick switching, and quick discharge.

Intelligent Test

Barcode recognition: barcode scanning, program matching, automatic startup, package.

Data management: local storage, network transmission, directly connection with MES system.

Rich Ports: RS232, LAN, WIFI, USB, PLC and I/O control interfaces

Product application

Power battery, energy storage battery series.

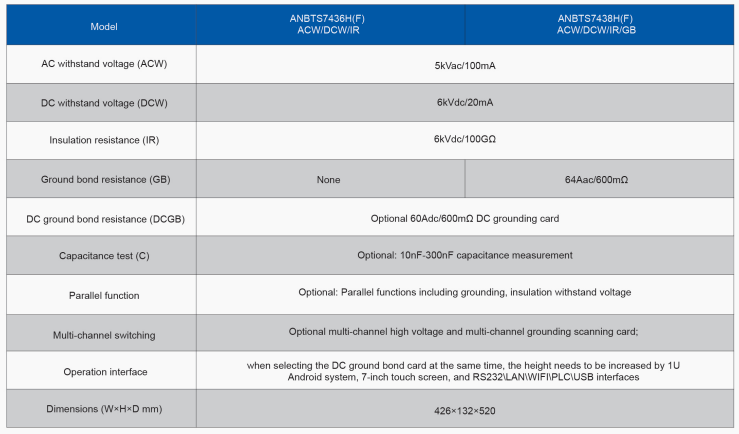

Technical specifications
