Photovoltaic Safety Analyzer
Product Model:
PVS(F) Series
Application:
meet the safety testing requirements of various electrical products with AC/DC input/output, such as photovoltaic modules, inverters, switching power supplies, electric drives, batteries, and charging piles.
Product overview Product features Product application technical specifications
Product overview

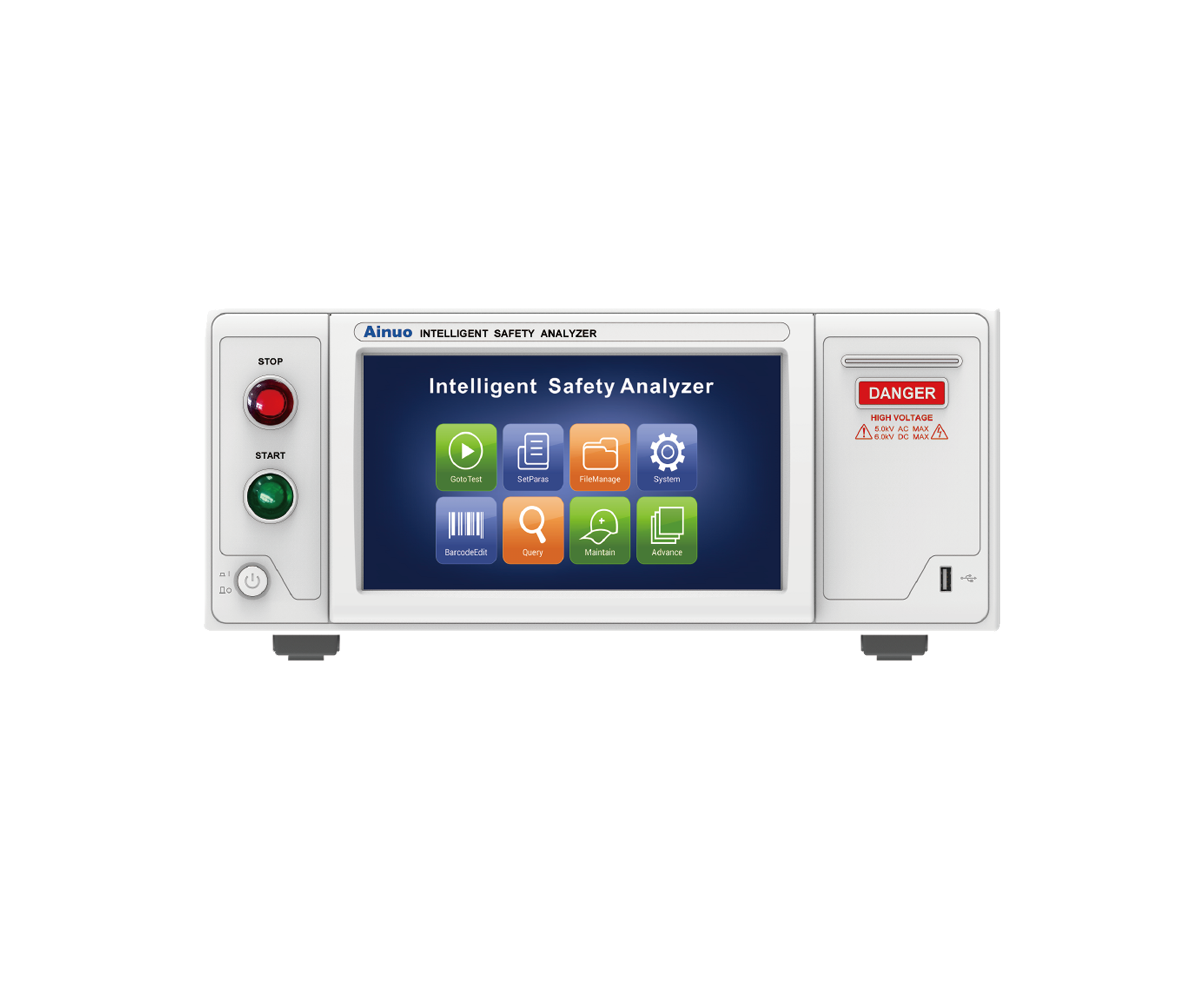

This Ainuo PVS(F) series photovoltaic safety analyzer has the characteristics of intelligence, high speed and high precision, with functions for AC/DC withstand voltage, insulation resistance, AC/DC ground bond resistance test, arc detection, open/short circuit detection, electric shock protection and others.

The series of products has wide ranges: 5kV/100mA AC withstand voltage, 10kV/100A DC withstand voltage, 10kV/50GΩ insulation resistance, 32A (or 64A)/600mΩ AC grounding test, and 40A (60A or 100A)/600mΩ DC ground bond resistance test.

This series of product has an intelligent platform, informatization functions and automatic interfaces, meeting requirements of high-quality development, intelligent manufacturing and industrial upgrading.

Product features

Safe and reliable

·         Draft units who participated in drafting of national standards and verification regulations for safety compliance analyzers;

·         30 years of experience on safety testing expertise and understanding of customer needs;

·         Complete electromagnetic environment, load conditions, endurance test verification;

·         Electric shock protection, arc detection, open/short circuit detection and other functions.



Convenient and efficient

·         Fast measurement and control: fast test, switching and discharge;

·         Parallel test: AC GB and ACW/DCW/IR in parallel, doubled speed;

·         Flexible configuration: multi functions, channels and models.



Intelligent and automatic

·         Smart safety compliance analyzer: Android system, 7” touch screen, self-learning smart keyboard;

·         Barcode recognition: barcode scanning, program matching, automatic startup, data packing;

·         Data management: local storage, network transmission, direct connection with MES system;

·         Interfaces: RS232, RS485, PLC, USB, CAN, WIFI.


Product application

This series of products can meet the safety testing requirements of various electrical products with AC/DC input/output, such as photovoltaic modules, inverters, switching power supplies, electric drives, batteries, and charging piles.
