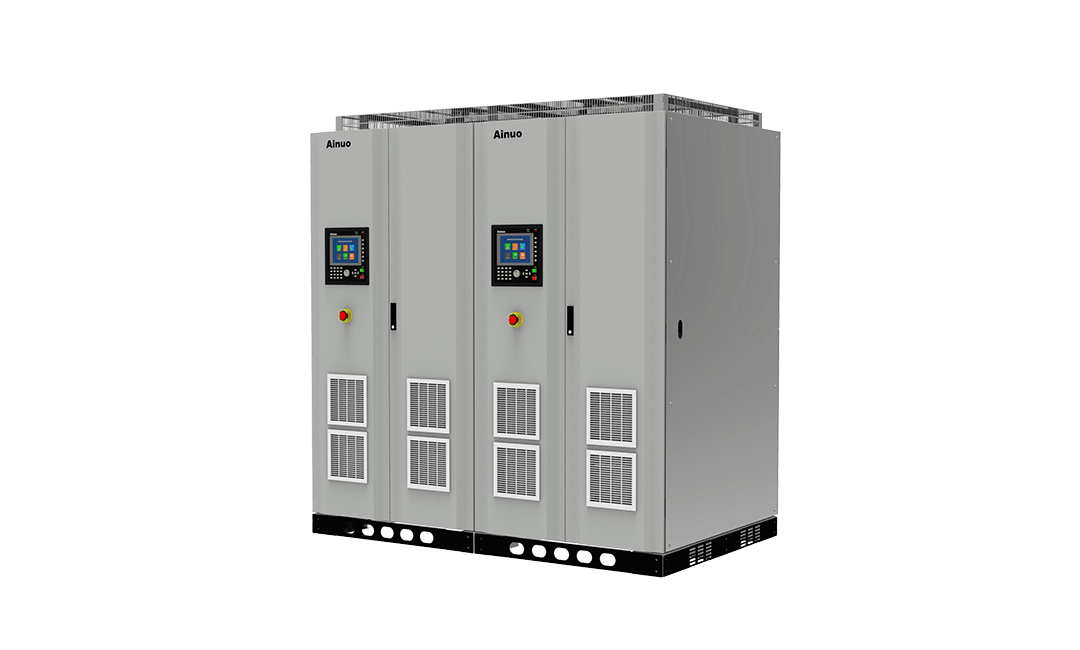

The ANEVT DA(F) Series dual-channel bidirectional DC power supply is a high-techproduct integrated with high-frequency PWM rectification technology, bidirectional DC conversion technology, and FPGA digital control technology. It has adaptive grid feedback capability and can meet the continuous energy feedback requirements in the full power range. It also offers seamless switching between forward and reverse outputs, enabling seamless connection of energy transfer. With dual-loop control technology, it achieves ultra-high control precision, rapid response to customer device applications, ensuring equipment test stability and data precision. With itsultra-wide range of voltage and current output capabilities and rich output programming test functions, it better meets the diverse testing needs of customers'products. The device also includes multiple protection programming functions to better protect the safety of customer equipment during testing. It provides independent dual-channel outputs, each of which is controllable, offering a concise and reliable test scheme for different tests such as tests of motors, electronic controls, hybrids, etc.
Provides dual-channel outputs, with power freely allocated to each channel.
Each channel has independent control and protection functions that do not interfere with each other.
Provides the source load integral mode with adjustable parameters.
High voltage, large current, and wide range output.
Features an adaptive grid feedback function for full-power continuous energy feedback.
Supports CV, CC, CP, and CR working modes. Voltage 0.05%FS and current 0.1%FS.
Response time ≤ 3ms, forward and reverse switching time ≤ 4ms.
Power factor≥0.99, current harmonic distortion≤3%.
Can withstand 1.25 times peak overload.
Simulates 7 types of batteries, such as lithium, nickel-hydrogen, lead-acid, etc.
Has 1st, 2nd, and 3rd order battery simulation functions, supporting import and export of data in mat and csv data formats.
Provides a 900-step programming function with a minimum programming time of 1mS.
Features an independent air duct heat dissipation design, supporting long-term continuous operation of the equipment.
Equipped with standard CAN, RS232/RS485, LAN, and other communication interfaces, and offers a three-in-one operation mode of buttons, knobs, and touch operation.
Tests of motors, electronic controls, and hybrids.

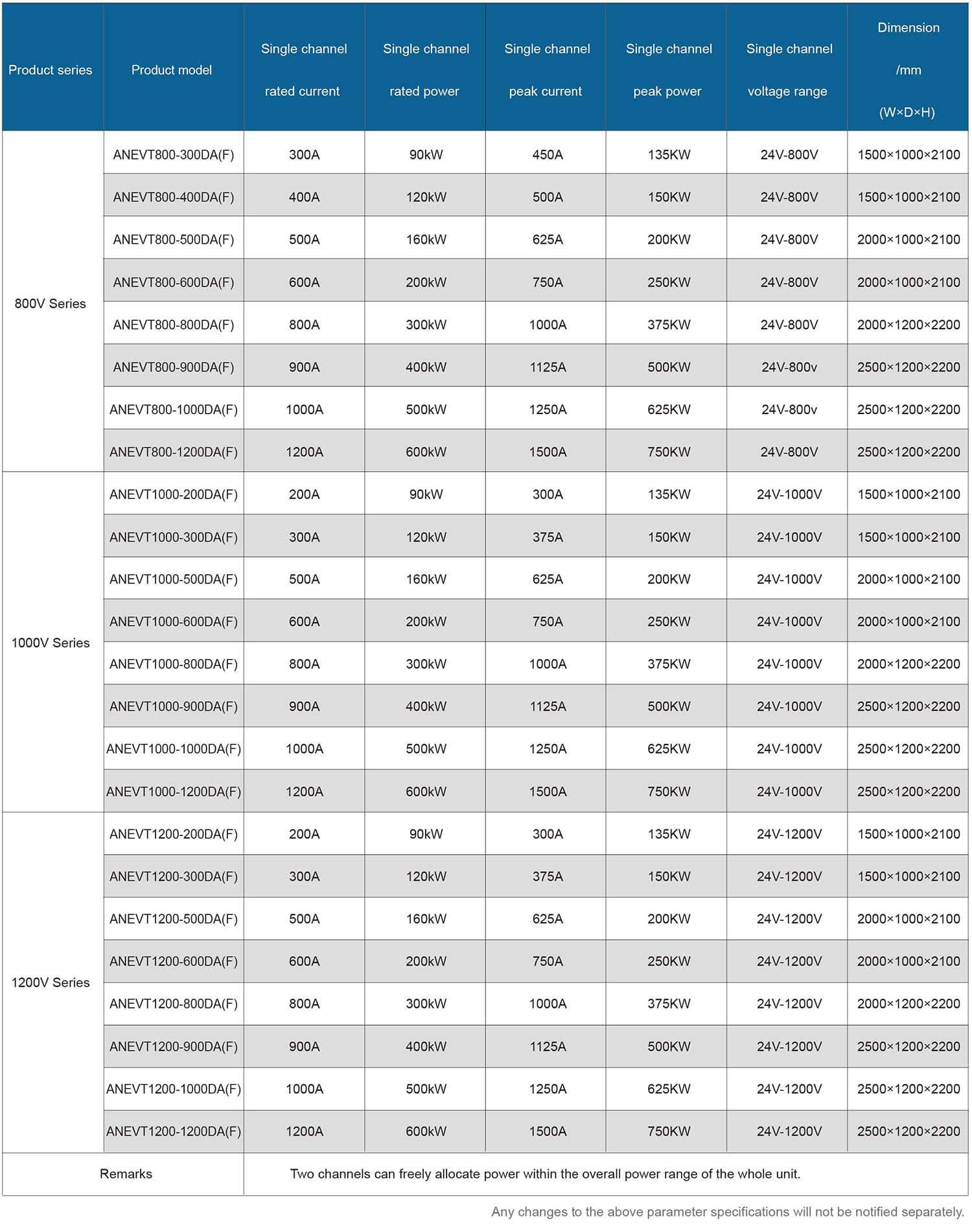

| Product Series | Product Models | Rated Current | Rated Power | Peak Current | Peak Power | Voltage Range | Dimension (W*D*H mm) |
| 800V Series | ANEVT800-300DA(F) | 300A | 90kW | 450A | 135kW | 12V - 800V | 1500*1000*2100 |
| ANEVT800-400DA(F) | 400A | 120kW | 500A | 150kW | 12V - 800V | 1500*1000*2100 | |
| ANEVT800-500DA(F) | 500A | 160kW | 625A | 200kW | 12V - 800V | 2000*1000*2100 | |
| ANEVT800-600DA(F) | 600A | 200kW | 750A | 250kW | 12V - 800V | 2000*1000*2100 | |
| ANEVT800-800DA(F) | 800A | 300kW | 1000A | 375kW | 12V - 800V | 2000*1000*2100 | |
| ANEVT800-900DA(F) | 900A | 400kW | 1125A | 500kW | 12V - 800V | 2000*1000*2100 | |
| ANEVT800-1000DA(F) | 1000A | 500kW | 1250A | 625kW | 12V - 800V | 2500*1000*2100 | |
| ANEVT800-1200DA(F) | 1200A | 600kW | 1500A | 750kW | 12V - 800V | 2500*1200*2200 | |
| 1200V Series | ANEVT1200-200DA(F) | 200A | 90kW | 300A | 135kW | 12V - 1200V | 1500*1000*2100 |
| ANEVT1200-300DA(F) | 300A | 120kW | 375A | 150kW | 12V - 1200V | 1500*1000*2100 | |
| ANEVT1200-500DA(F) | 500A | 160kW | 625A | 200kW | 12V - 1200V | 2000*1000*2100 | |
| ANEVT1200-600DA(F) | 600A | 200kW | 750A | 250kW | 12V - 1200V | 2000*1000*2100 | |
| ANEVT1200-800DA(F) | 800A | 300kW | 1000A | 375kW | 12V - 1200V | 2000*1000*2100 | |
| ANEVT1200-900DA(F) | 900A | 400kW | 1125A | 500kW | 12V - 1200V | 2000*1000*2100 | |
| ANEVT1200-1000DA(F) | 1000A | 500kW | 1250A | 625kW | 12V - 1200V | 2500*1200*2200 | |
| ANEVT1200-1200DA(F) | 1200A | 600kW | 1500A | 750kW | 12V - 1200V | 2500*1200*2200 |

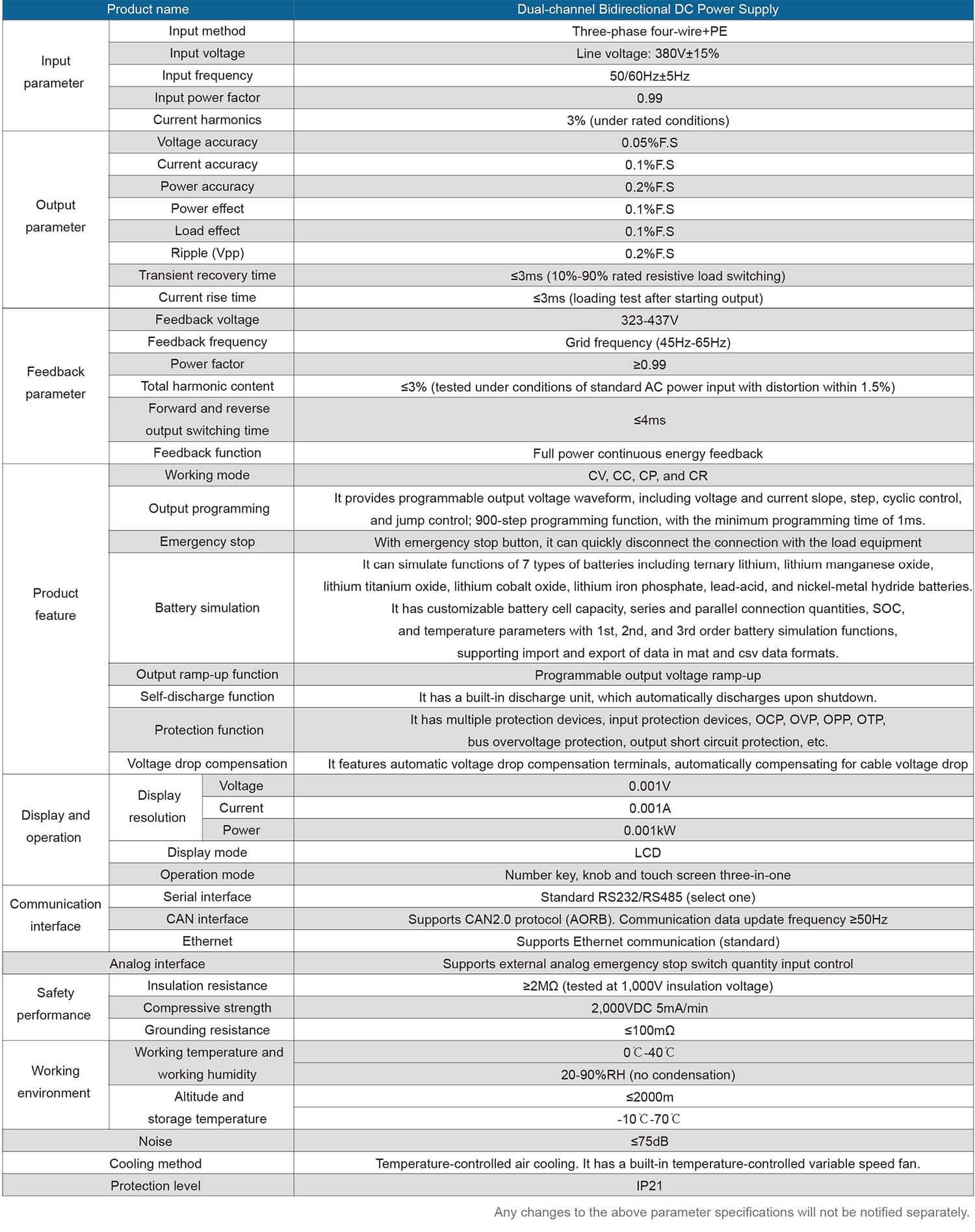

| Product Name | High-Precision Bidirectional DC Power Supply | |
| Input | Method | Three-phase four-wire+PE |
| Voltage | Line voltage: 380V±15% | |
| Frequency | 50/60Hz±5Hz | |
| Power Factor | 0.99 | |
| Electric Harmony | 3% (under rated conditions) | |
| Output | Voltage Accuracy | 0.05%F.S |
| Current Accuracy | 0.1%F.S | |
| Power Accuracy | 0.2%F.S | |
| Power Effect | 0.1%F.S | |
| Load Effect | 0.1%F.S | |
| Ripple (Vpp) | 0.2%F.S | |
| Transient Recovery Time | ≤ 3ms (10% - 90% rated resistive load switching) | |
| Current Rise Time | ≤3ms (loading test after starting output) | |
Feedback Parametes | Voltage | 323-437V |
| Frequency | Grid frequency (45Hz-55Hz) | |
| Power Factor | ≥0.99 | |
| Total Harmonic Content | ≤3% (tested under conditions of standard AC power input with distortion within 1.5%) | |
Forward and Reverse Output Switching Time | ≤4ms | |
| Feedback Function | Full power continuous energy feedback | |
Product Features | Working Mode | CV, CC, CP and CR |
| Output Programming | Programmable output voltage waveform, including voltage and current slope, step, cyclic control, and jump control; 900-step programming function, with a minimum programming time of 1ms. | |
| Emergency Stop | With an emergency stop button, it can quickly disconnect the connection with the load equipment | |
| Battery Simulation | It can simulate functions of 7 types of batteries, including ternary lithium, lithium manganese oxide, lithium titanium oxide, lithium cobalt oxide, lithium iron phosphate, lead-acid, and nickel-metal hydride. It has customizable battery cell capacity, series and parallel connection quantities, SOC, and temperature parameters with 1st, 2nd, and 3rd order battery simulation functions, supporting import and export of data in MAT and CSV data formats. | |
| Output Ramp-up Function | Programmable output voltage ramp-up | |
| Self-discharge Function | Built-in discharge unit that automatically discharges upon shutdown. | |
| Protection Function | It has multiple protection devices: input protection devices, OCP, OVP, OPP, OTP, bus overvoltage protection, output short-circuit protection, etc. | |
| Voltage Drop Compensation | It features automatic voltage drop compensation terminals, automatically compensating for cable voltage drop | |
Display and Operation | Display Resolution | Voltage: 0.001V |
| Current: 0.001A | ||
| Power: 0.001kW | ||
| Display Mode | LCD | |
| Operation Mode | Number key, knob, and touch screen three-in-one | |
Communication Interface | Serial Interface | Standard RS232/RS485 |
| CAN Interface | Supports CAN2.0 protocol (AORB). | |
| Ethernet | Supports Ethernet communication | |
| Analog Interface | Supports external analog emergency stop switch quantity input control | |
Safety Performance | Insulation Resistance | ≥2MΩ (tested at 1,000V insulation voltage) |
| Compressive Strength | 2000VDC 5mA/min | |
| Grounding Resistance | ≤100mΩ | |
Working Environment | Working Temperature | 0℃ - 40℃ |
| Working Humidity | 20-90%RH (no condensation) | |
| Altitude | ≤ 2,000m | |
| Storage Temperature | -10℃ - 70℃ | |
| Noise | ≤ 75dB | |
| Cooling Method | Temperature-controlled air cooling. It has a built-in temperature-controlled variable-speed fan. | |
| Protection Level | IP21 | |
* Any changes to the above parameter specifications will not be notified separately.
