In the relentless pursuit of efficiency, performance, and consumer satisfaction, the home appliance industry is undergoing a silent revolution. From variable-speed compressors in refrigerators and inverters in washing machines to sophisticated induction cooktops and smart air purifiers, today's appliances are more complex and energy-conscious than ever before. For engineers, designers, and quality assurance teams, this complexity presents a significant challenge: how do you accurately measure and optimize the true performance of these devices? The answer lies in moving beyond traditional power measurement tools and embracing the capabilities of a multi-channel power analyzer.
This isn't just an incremental upgrade; it's a paradigm shift in how we understand the energy soul of a modern appliance.

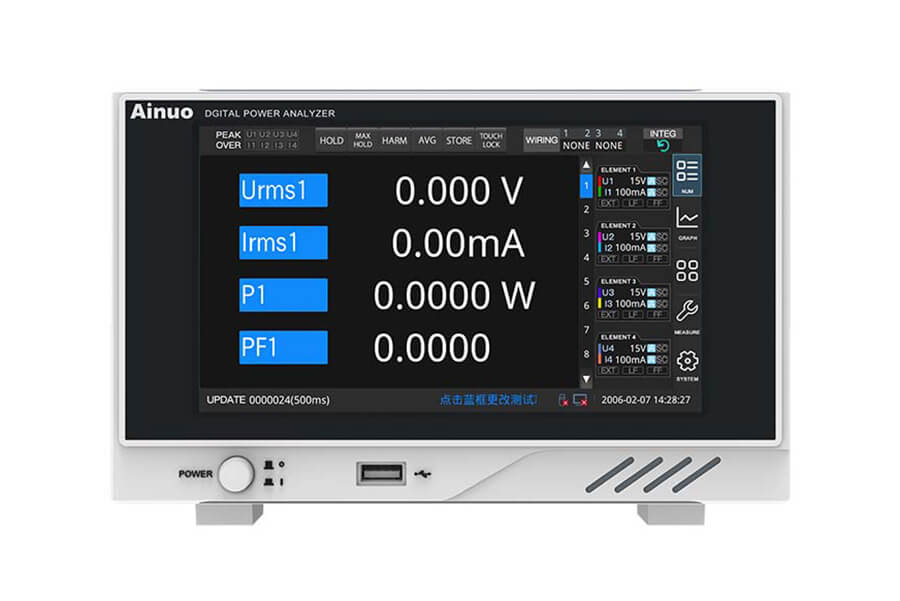

What is a Multi-Channel Power Analyzer?
Before we dive into the advantages, let's define our key tool. A multi-channel power analyzer is a sophisticated electronic instrument designed to simultaneously measure electrical parameters—such as voltage, current, power, power factor, and harmonic distortion—across multiple, independent circuits or motor phases.
Think of it as a high-definition, multi-camera setup for diagnosing an appliance's electrical health. A traditional power meter might give you a single, aggregate view—like a wide-angle shot of a whole room. A multi-channel analyzer, however, provides synchronized, individual views of every critical component—a close-up on the compressor, another on the fan motor, a third on the control board, and another on the heating element—all perfectly timed together.
Key features that set it apart include:
Simultaneous, Synchronized Inputs: Multiple measurement channels that sample data at the same instant, allowing for precise correlation of events across different parts of the system.
High Precision and Bandwidth: Capable of accurately capturing rapid current and voltage fluctuations typical of inverter-driven motors and switching power supplies.
Advanced Computational Capabilities: It doesn't just measure raw data; it calculates crucial derived values like true power (W), apparent power (VA), reactive power (VAR), efficiency, and harmonic spectra in real-time for each channel.
Integrated Data Logging and Visualization: Powerful software allows users to view trends over time, compare channels, and deeply analyze the interplay between components.
The Limitations of Traditional Power Analyzers
To appreciate the multi-channel advantage, we must first understand the frustrations inherent in single-channel or dual-channel setups. Traditional power analyzers were designed for a simpler era of appliances, often with single-speed motors and resistive heating elements.
The primary challenges they face with modern appliances include:
The "Black Box" Problem: A single-channel analyzer measuring at the wall socket can only tell you the total power consumption of the entire appliance. It gives you the what (total energy use) but not the why or where. If a refrigerator is drawing more power than expected, is it the compressor struggling, a defrost heater stuck on, or an inefficient fan? A single measurement point cannot answer this. Engineers are left to guess, or resort to time-consuming and unsynchronized manual switching of probes between components.
Inability to Capture Transient Events: Modern appliances are dynamic. A washing machine's drum motor, drain pump, and water valves activate in a carefully orchestrated sequence. A traditional analyzer might average these power spikes and dips, completely missing inefficiencies, inrush currents, or timing errors that occur in milliseconds. This leads to incomplete data and products that may pass lab tests but fail in real-world usage scenarios.
Inefficiency in Measuring Polyphase Systems: While less common in homes, some high-end appliances like powerful HVAC systems or commercial-grade kitchen equipment use three-phase power. A single-channel instrument is utterly incapable of providing a complete picture of a balanced or unbalanced polyphase system, risking inaccurate efficiency calculations and potential design flaws.
A Laborious and Error-Prone Process: Testing each component individually with a single-channel analyzer is a tedious process. It requires stopping and starting tests, manually correlating data sets from different time periods, and introduces a high risk of human error. This drastically slows down the development cycle and increases time-to-market.
Key Advantages of a Multi-Channel Power Analyzer in Appliance Testing
By solving the shortcomings of traditional tools, a multi-channel power analyzer delivers profound advantages throughout the appliance product lifecycle, from R&D to production line validation.
1. Unparalleled Component-Level Insight and Optimization
This is the most significant advantage. Engineers can now see the exact energy footprint of every individual component in real-time, under actual operating conditions.
Example: When testing a dishwasher, one channel can be attached to the circulation pump, another to the heating element, a third to the drain pump, and a fourth to the control system. You can precisely determine how much energy is used during the wash cycle versus the heated dry cycle. This data is invaluable for optimizing control algorithms—e.g., slightly delaying the heater until after the drain pump finishes to reduce simultaneous peak loads and improve overall efficiency.
2. Accurate Efficiency Calculations for Complex Systems
Efficiency is the holy grail for appliance manufacturers striving for Energy Star ratings and consumer appeal. True system efficiency isn't just about output vs. input; it's about understanding losses at every stage.
Example: For an inverter-driven compressor in a refrigerator, a multi-channel analyzer can simultaneously measure the DC input to the motor and the AC output of the inverter drive. This allows for direct calculation of the inverter's efficiency. Combined with mechanical output measurements, you can map the entire energy conversion chain from wall socket to cooling power, identifying precise points of loss.
3. Comprehensive Inrush Current Characterization
The initial surge of current when a motor or transformer is energized—inrush current—can be 5-10 times higher than normal operating current. This stresses components, causes voltage dips, and trips circuit breakers. A multi-channel analyzer with high sampling speed can capture the exact magnitude and duration of inrush currents for multiple motors simultaneously, informing the design of soft-start circuits and ensuring reliability.
4. Simplified Harmonics and Power Quality Analysis
Modern appliances with switch-mode power supplies (SMPS) and inverter drives are significant sources of harmonic distortion, which can pollute the home's electrical system and interfere with other devices. A multi-channel analyzer can perform harmonic analysis on each component to identify the biggest culprits. This allows engineers to design and test better filtering solutions at the source, ensuring the appliance is a good "citizen" on the electrical grid.
5. Dramatically Reduced Testing Time and Accelerated Development
Time is money. The ability to conduct a single, comprehensive test that captures all necessary data across the entire system slashes testing time. Design iterations become faster because engineers have immediate, correlated feedback on how a change to one component affects the power consumption of others. This accelerates the development process and gets better products to market faster.
Future Trends: The Evolving Role of the Multi-Channel Analyzer
The journey doesn't end here. The technology is evolving to meet the demands of an increasingly connected and intelligent world.
Integration with IoT and Data Systems: Future analyzers will not be isolated instruments. They will feature seamless connectivity to cloud platforms and Product Lifecycle Management (PLM) systems. Test data will be automatically uploaded to centralized databases, where AI and machine learning algorithms can analyze thousands of test cycles to identify subtle patterns, predict failure modes, and suggest optimizations beyond human perception.
Higher Channel Counts and Modularity: As appliances incorporate more sensors and smart features, the demand for even more measurement channels will grow. We will see the rise of modular systems where engineers can start with a base unit and expand channel count as needed, creating a scalable and future-proof test bench.
Tighter Integration with Mechanical and Environmental Data: The next frontier is correlating electrical data with physical performance. Future systems will seamlessly synchronize electrical waveforms from the power analyzer with data from torque sensors, flow meters, thermocouples, and vibration sensors. This provides a complete digital twin of the appliance, showing exactly how electrical decisions impact physical performance and vice versa.
Enhanced Usability and Automated Reporting: Software will become more intuitive, with pre-configured test profiles for common appliance types (e.g., "washer," "refrigerator," "induction hob"). The system will automatically generate compliance reports for energy standards, reducing the administrative burden on engineers and minimizing human error.
Conclusion: A Non-Negotiable Tool for Modern Excellence
Testing a modern, microprocessor-controlled, inverter-driven appliance with a traditional power analyzer is like trying to perform a symphony with a single microphone. You might get the general melody, but you’ll miss the nuance, harmony, and individual contributions of each instrument.
A multi-channel power analyzer provides the complete orchestral score. It transforms appliance testing from a frustrating game of inference into a precise science of understanding. The advantages—component-level optimization, accurate efficiency mapping, robust quality control, and dramatically faster development cycles—directly translate into tangible business outcomes: superior products, higher energy ratings, reduced warranty claims, and a stronger competitive edge.
For any company serious about leading the home appliance market, investing in a multi-channel power analyzer is no longer a luxury; it is a fundamental requirement for engineering excellence.
